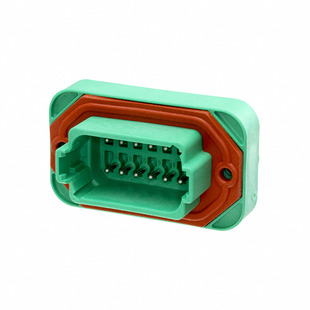

Agastat Relays / TE Connectivity
| Part Number | DT15-12PC | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | DT RECP ASM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9224 pcs | Data sheet | 1.DT15-12PC.pdf2.DT15-12PC.pdf |
| Voltage Rating | 250VDC | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | DT | Row Spacing - Mating | 0.360" (9.14mm) |
| Pitch - Mating | 0.175" (4.44mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 1734-1644 DT15-12PC-ND |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 12 |
| Mounting Type | Panel Mount, Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Height | 1.185" (30.10mm) | Insulation Color | Green |
| Ingress Protection | IP68/IP6K9K | Features | Mounting Flange |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Panel Mount, Through Hole 12 position 0.175" (4.44mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.122" (3.10mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Nickel |
| Connector Type | Header | Applications | Automotive |
