0512964094

Affinity Medical Technologies - a Molex company

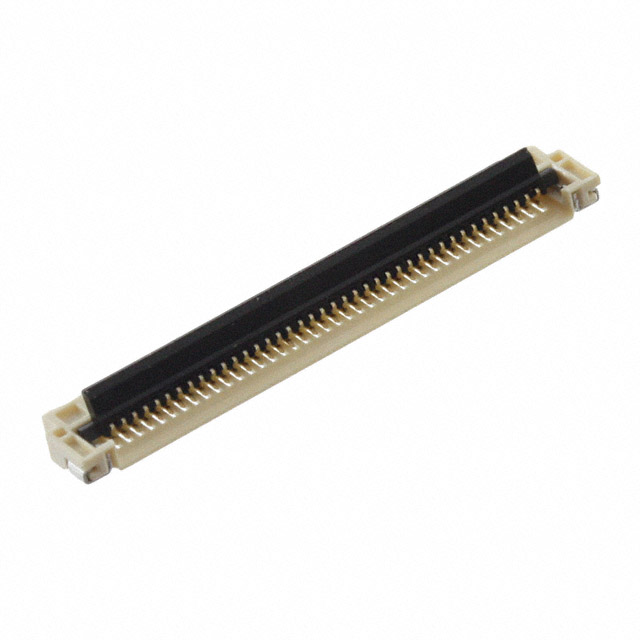

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0512964094
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC BOTTOM 40POS 0.50MM R/A
Datasheets:	0512964094.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	18785 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 18785 pcs

Reference Price (In US Dollars)

1 pcs: $1.824

10 pcs: $1.75

25 pcs: $1.604

50 pcs: $1.532

100 pcs: $1.459

250 pcs: $1.276

500 pcs: $1.24

1000 pcs: $1.058

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.824

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0512964094

Part Number	0512964094	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC BOTTOM 40POS 0.50MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18785 pcs	Data sheet	0512964094.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 51296	Pitch	0.020" (0.50mm)
Packaging	Cut Tape (CT)	Other Names	WM6747CT
Operating Temperature	-20°C ~ 85°C	Number of Positions	40
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	13 Weeks	Locking Feature	Flip Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Housing Color	Beige	Height Above Board	0.051" (1.30mm)
Flat Flex Type	FFC, FPC	Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	40 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating	0.5A	Contact Material	Phosphor Bronze
Contact Finish Thickness	3.90µin (0.099µm)	Contact Finish	Gold
Connector/Contact Type	Contacts, Bottom	Cable End Type	Straight, Tapered
Actuator Material	Polyamide (PA9T), Nylon 9T, Glass Filled	Actuator Color	Black
