0512965494

Affinity Medical Technologies - a Molex company

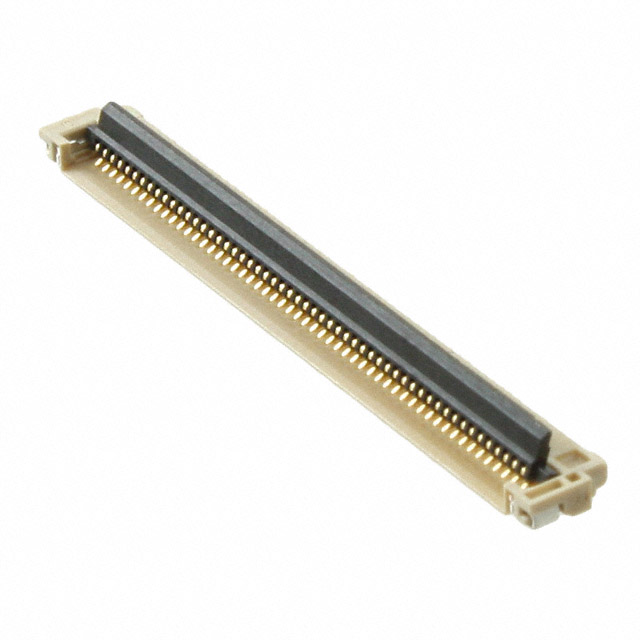

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0512965494
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC BOTTOM 54POS 0.50MM R/A
Datasheets:	1.0512965494.pdf 2.0512965494.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	84072 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 84072 pcs

Reference Price (In US Dollars)

3000 pcs: $0.431

6000 pcs: $0.409

9000 pcs: $0.40

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.431

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0512965494

Part Number	0512965494	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC BOTTOM 54POS 0.50MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	84072 pcs	Data sheet	1.0512965494.pdf 2.0512965494.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 51296	Pitch	0.020" (0.50mm)
Packaging	Tape & Reel (TR)	Other Names	051296-5494 0512965494-ND 51296-5494 51296-5494-C 512965494 Q3636780 WM6472TR
Operating Temperature	-20°C ~ 85°C	Number of Positions	54
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	23 Weeks	Locking Feature	Flip Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Housing Color	Beige	Height Above Board	0.051" (1.30mm)
Flat Flex Type	FFC, FPC	Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	54 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating	0.5A	Contact Material	Phosphor Bronze
Contact Finish Thickness	3.90µin (0.099µm)	Contact Finish	Gold
Connector/Contact Type	Contacts, Bottom	Cable End Type	Straight, Tapered
Actuator Material	Polyamide (PA9T), Nylon 9T, Glass Filled	Actuator Color	Black
