Affinity Medical Technologies - a Molex company
| Part Number | 0512964093 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|

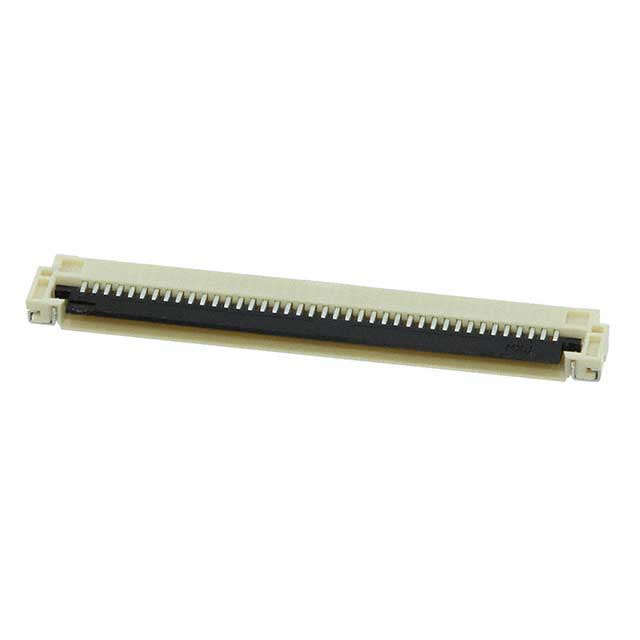

| Description | CONN FFC BOTTOM 40POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6769 pcs | Data sheet | 0512964093.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | Easy-On 51296 | Pitch | 0.020" (0.50mm) |
| Packaging | Tape & Reel (TR) | Other Names | 051296-4093 51296-4093 512964093 WM3351TR |
| Operating Temperature | -20°C ~ 85°C | Number of Positions | 40 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Housing Color | Beige |
| Height Above Board | 0.051" (1.30mm) | Flat Flex Type | FFC, FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 40 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 39.4µin (1.00µm) |
| Contact Finish | Tin Bismuth | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Straight, Tapered | Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Actuator Color | Black |
