0026482163

Affinity Medical Technologies - a Molex company

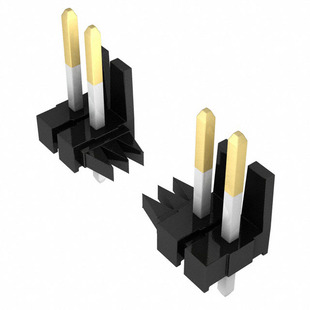

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0026482163
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN BKWY HEADER 16POS STR GOLD
Datasheets:	0026482163.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	25466 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 25466 pcs

Reference Price (In US Dollars)

1 pcs: $1.394

10 pcs: $1.339

25 pcs: $1.228

50 pcs: $1.172

100 pcs: $1.116

250 pcs: $0.977

500 pcs: $0.949

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.394

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0026482163

Part Number	0026482163	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN BKWY HEADER 16POS STR GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	25466 pcs	Data sheet	0026482163.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 1 Wall
Series	KK 41681	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	0.750" (19.05mm)	Other Names	0026-48-2163 002648-2163 0026482163-ND 26-48-2163 26482163 WM50005-16 WM50005-2163 WM50005-2163-ND
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	16
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyester, Glass Filled
Insulation Height	0.360" (9.14mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole 16 position 0.156" (3.96mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.172" (4.37mm)	Contact Length - Mating	0.450" (11.43mm)
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	20.0µin (0.51µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header, Breakaway	Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
