0026482170

Affinity Medical Technologies - a Molex company

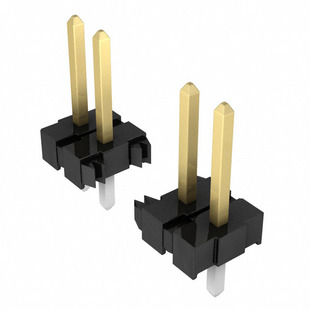

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0026482170
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN BKWY HEADER 17POS STR GOLD
Datasheets:	0026482170.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	9791 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 9791 pcs

Reference Price (In US Dollars)

1 pcs: $3.544

10 pcs: $3.391

25 pcs: $3.083

50 pcs: $2.928

100 pcs: $2.851

250 pcs: $2.543

500 pcs: $2.389

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$3.544

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0026482170

Part Number	0026482170	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN BKWY HEADER 17POS STR GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9791 pcs	Data sheet	0026482170.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	KK 41661	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	0.890" (22.61mm)	Other Names	WM50004-17 WM50004-2170 WM50004-2170-ND
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	17
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyester, Glass Filled
Insulation Height	0.128" (3.25mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole 17 position 0.156" (3.96mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.172" (4.37mm)	Contact Length - Mating	0.590" (14.99mm)
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	20.0µin (0.51µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header, Breakaway	Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
