3M
| Part Number | 220-3342-00-0602J | Manufacturer | 3M |
|---|---|---|---|

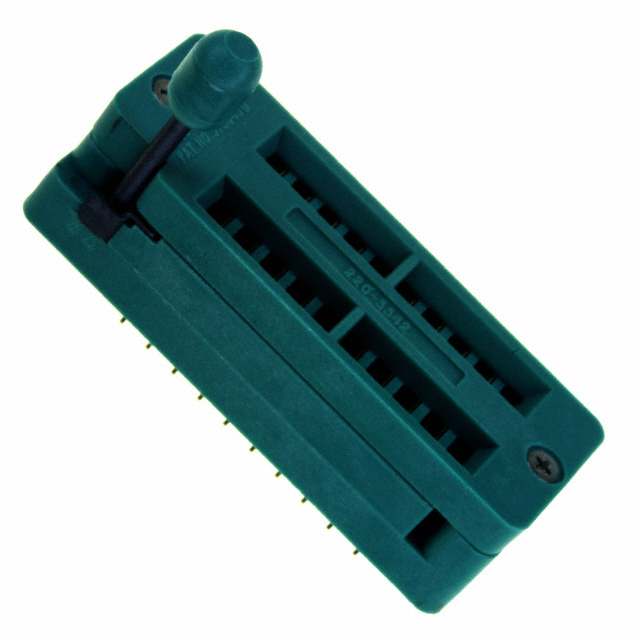

| Description | CONN IC DIP SOCKET ZIF 20POS GLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5105 pcs | Data sheet | 1.220-3342-00-0602J.pdf2.220-3342-00-0602J.pdf |
| Type | DIP, ZIF (ZIP), 0.3" (7.62mm) Row Spacing | Termination Post Length | 0.110" (2.78mm) |
| Termination | Press-Fit | Series | Textool™ |
| Pitch - Post | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | 2-002003342000006002 2002003342-000006002 220-3342-00-0602 2203342000602J 3M2002 51138-69542-2 5113869542 51138695422 5400733892 54007338925 7000007706 80-6101-2473-9 80610124739 JE-1509-0022-1 JE150900221 |
| Operating Temperature | -55°C ~ 125°C | Number of Positions or Pins (Grid) | 20 (2 x 10) |
| Mounting Type | Connector | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polysulfone (PSU), Glass Filled |
| Features | Closed Frame | Current Rating | 1A |
| Contact Resistance | - | Contact Material - Post | Beryllium Copper |
| Contact Material - Mating | Beryllium Copper | Contact Finish Thickness - Post | 30.0µin (0.76µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold |
