3M

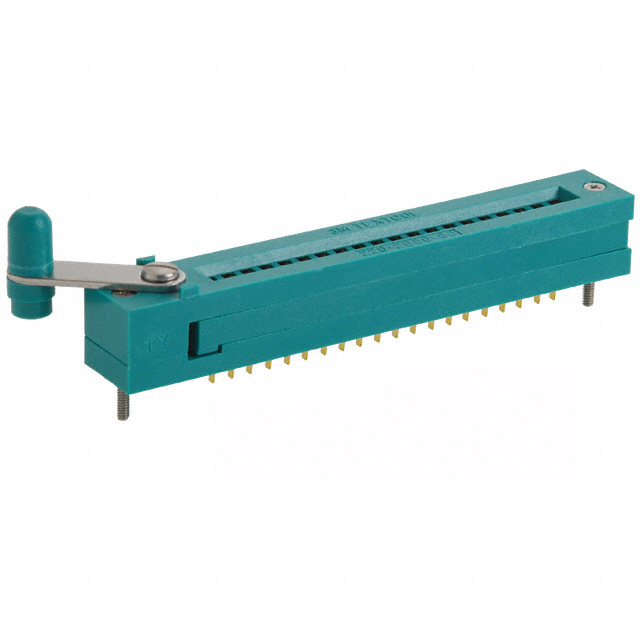

| Part Number | 220-2600-00-0602 | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN SOCKET SIP ZIF 20POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2633 pcs | Data sheet | 1.220-2600-00-0602.pdf2.220-2600-00-0602.pdf |
| Type | SIP, ZIF (ZIP) | Termination Post Length | 0.130" (3.30mm) |
| Termination | Solder | Series | Textool™ |
| Pitch - Post | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | 0 51138 69548 4 2.2026E+12 2202600000602 3M5062 5111530439 51115304392 7010291988 JE150378279 JE150900056 |
| Operating Temperature | -55°C ~ 125°C | Number of Positions or Pins (Grid) | 20 (1 x 20) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polysulfone (PSU), Glass Filled |
| Features | - | Current Rating | 1A |
| Contact Resistance | - | Contact Material - Post | Beryllium Copper |
| Contact Material - Mating | Beryllium Copper | Contact Finish Thickness - Post | 30.0µin (0.76µm) |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold |
