694103303002

Wurth Electronics

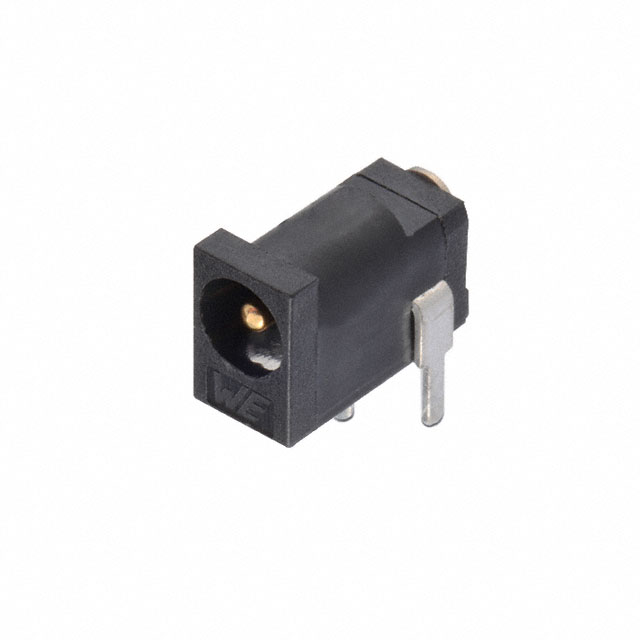

Image may be representation. See specifications for product details.

Product Overview

Part Number:	694103303002
Manufacturer/Brand:	Wurth Electronics
Product description	CONN PWR JACK 1.05X3.5MM SOLDER
Datasheets:	694103303002.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	130298 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 130298 pcs

Reference Price (In US Dollars)

1 pcs: $0.303

10 pcs: $0.289

50 pcs: $0.258

100 pcs: $0.238

500 pcs: $0.207

1000 pcs: $0.176

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.303

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 694103303002

Part Number	694103303002	Manufacturer	Wurth Electronics
Description	CONN PWR JACK 1.05X3.5MM SOLDER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	130298 pcs	Data sheet	694103303002.pdf
Voltage - Rated	30VDC	Thread Size	-
Termination	Solder	Shielding	Unshielded
Series	WR-DC	Packaging	Bulk
Other Names	732-5925	Operating Temperature	-40°C ~ 85°C
Number of Positions/Contacts	2 Conductors, 3 Contacts	Mounting Type	Through Hole, Right Angle
Mounting Feature	-	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Length/Depth	0.354" (9.00mm)	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Internal Switch(s)	Single Switch, Normally Closed	Insulation Color	-
Ingress Protection	-	Industry Recognized Mating Diameter	1.05mm ID (0.041"), 3.50mm OD (0.138")
Includes	-	Housing Material	Polyamide (PA66), Nylon 6/6
Gender	Male	Features	-
Detailed Description	Power Barrel Connector Jack 1.05mm ID (0.041"), 3.50mm OD (0.138") Through Hole, Right Angle	Current Rating	2A
Contact Material - Plating	Tin	Contact Material	Copper Alloy
Connector Type	Jack	Body Material	-
Body Color	Black	Actual Diameter	0.041" (1.05mm ID), 0.165" (4.20mm OD)
