Wurth Electronics
| Part Number | 694101308002 | Manufacturer | Wurth Electronics |
|---|---|---|---|

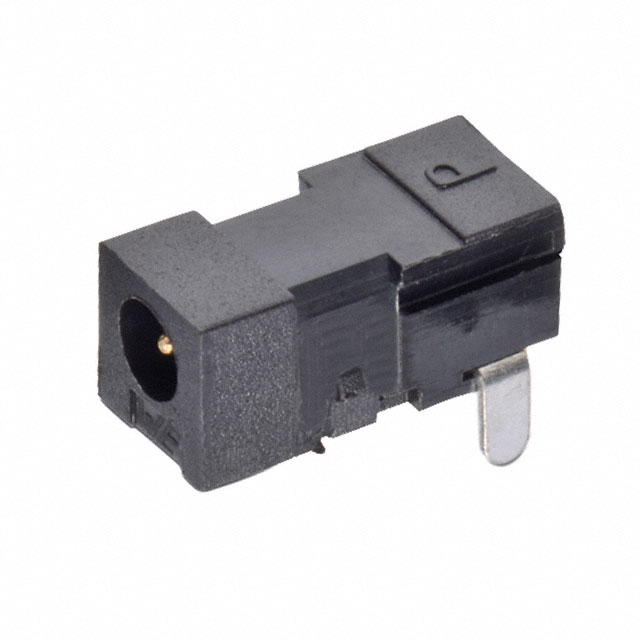

| Description | CONN PWR JACK 0.7X2.35MM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80341 pcs | Data sheet | 694101308002.pdf |
| Voltage - Rated | 12VDC | Thread Size | - |
| Termination | Solder | Shielding | Unshielded |
| Series | WR-DC | Packaging | Bulk |
| Other Names | 732-5920 | Operating Temperature | -20°C ~ 85°C |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts | Mounting Type | Through Hole, Right Angle |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | 0.354" (9.00mm) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Single Switch, Normally Closed | Insulation Color | - |
| Ingress Protection | - | Industry Recognized Mating Diameter | 0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1 |
| Includes | - | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Gender | Male | Features | Board Guide |
| Detailed Description | Power Barrel Connector Jack 0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1 Through Hole, Right Angle | Current Rating | 2A |
| Contact Material - Plating | Tin | Contact Material | Copper Alloy |
| Connector Type | Jack | Body Material | - |
| Body Color | Black | Actual Diameter | 0.026" (0.65mm ID), 0.110" (2.80mm OD) |
