Wurth Electronics

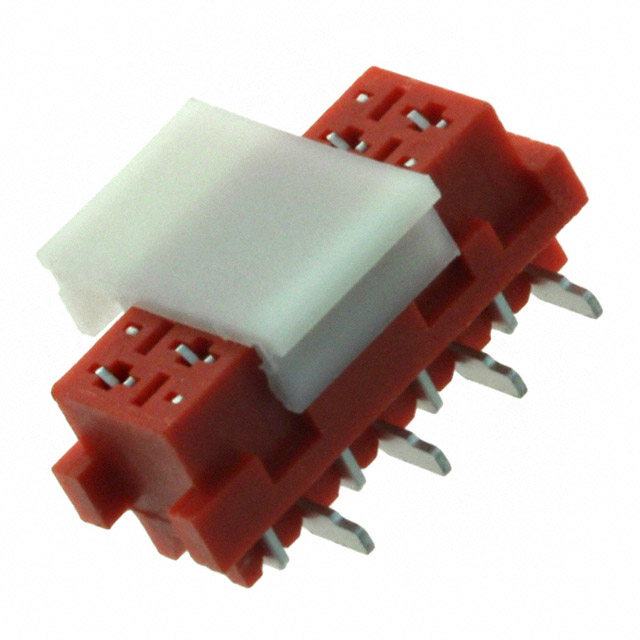

| Part Number | 690367280876 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | CONN 2.54MM SMD FEMALE POLAR 8P | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 127752 pcs | Data sheet | 1.690367280876.pdf2.690367280876.pdf |
| Voltage Rating | 100VAC | Termination | Solder |
| Style | Board to Board or Cable | Series | WR-MM |
| Row Spacing - Mating | 0.059" (1.50mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tape & Reel (TR) | Other Names | 732-1966-2 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 8 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 17 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA6T), Nylon 6T | Insulation Height | 0.207" (5.25mm) |
| Insulation Color | Red | Ingress Protection | - |
| Features | Pick and Place | Fastening Type | Push-Pull |
| Detailed Description | 8 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Tin | Current Rating | 1.5A per Contact |
| Contact Type | Forked | Contact Shape | Rectangular |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Receptacle | Applications | - |
