Wurth Electronics
| Part Number | 690367280476 | Manufacturer | Wurth Electronics |
|---|---|---|---|

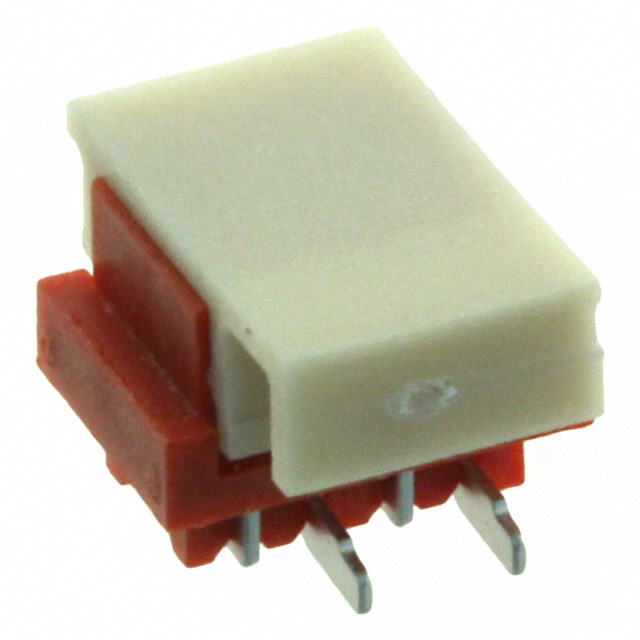

| Description | CONN 2.54MM SMD FEMALE POLAR 4P | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 209915 pcs | Data sheet | 1.690367280476.pdf2.690367280476.pdf |
| Voltage Rating | 100VAC | Termination | Solder |
| Style | Board to Board or Cable | Series | WR-MM |
| Row Spacing - Mating | 0.059" (1.50mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tape & Reel (TR) | Other Names | 732-1964-2 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.207" (5.25mm) | Insulation Color | Red |
| Ingress Protection | - | Features | Pick and Place |
| Fastening Type | Push-Pull | Detailed Description | 4 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Tin |
| Current Rating | 1.5A per Contact | Contact Type | Forked |
| Contact Shape | Rectangular | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | - |
