Wurth Electronics
| Part Number | 68713014522 | Manufacturer | Wurth Electronics |
|---|---|---|---|

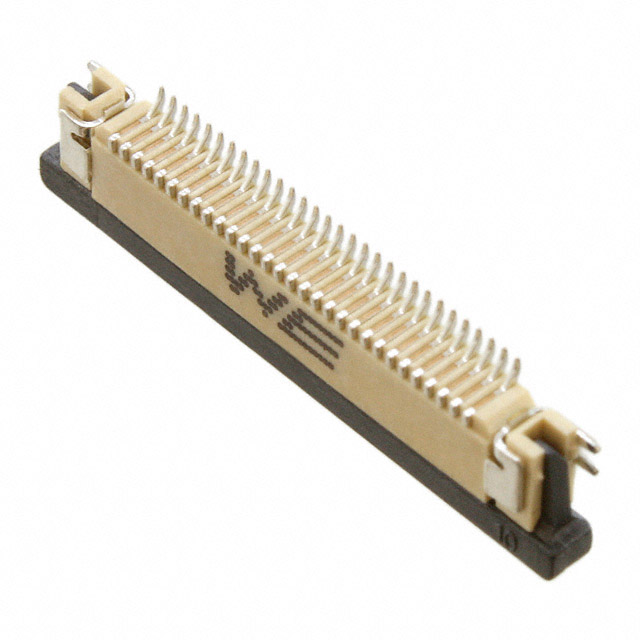

| Description | CONN FPC BOTTOM 30POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 64799 pcs | Data sheet | 1.68713014522.pdf2.68713014522.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | WR-FPC | Pitch | 0.020" (0.50mm) |
| Packaging | Cut Tape (CT) | Other Names | 732-3518-1 |
| Operating Temperature | -25°C ~ 85°C | Number of Positions | 30 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 25 | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 13 Weeks | Locking Feature | Slide Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP) |
| Housing Color | Ivory | Height Above Board | 0.079" (2.00mm) |
| Flat Flex Type | FPC | Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 30 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
| Current Rating | 0.5A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 100.0µin (2.54µm) | Contact Finish | Tin |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Tapered |
| Actuator Material | Liquid Crystal Polymer (LCP) | Actuator Color | Black |
