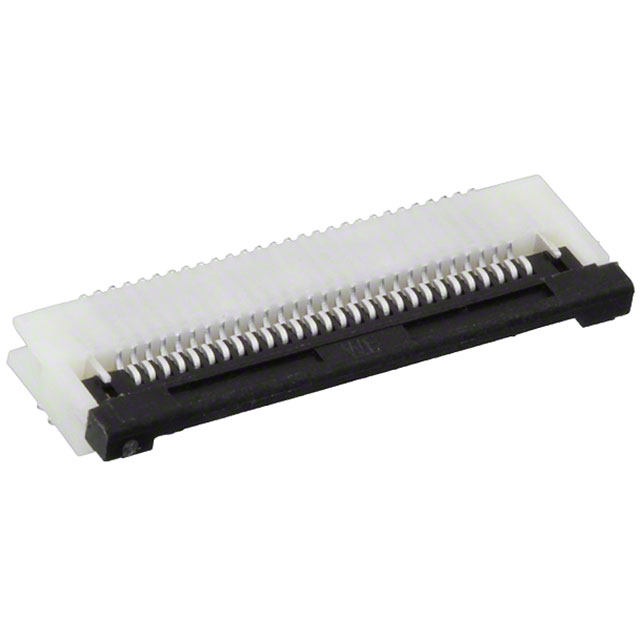

Wurth Electronics
| Part Number | 687128149022 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | CONN .5MM HORZ BOTTOM SMD 28POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61396 pcs | Data sheet | 1.687128149022.pdf2.687128149022.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | WR-FPC | Pitch | 0.020" (0.50mm) |
| Packaging | Tape & Reel (TR) | Other Names | 732-6006-2 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 28 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 20 Weeks | Locking Feature | Flip Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA6T), Nylon 6T |
| Housing Color | Ivory | Height Above Board | 0.087" (2.20mm) |
| Flat Flex Type | FFC, FPC | Features | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 28 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
| Current Rating | 0.5A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 120.0µin (3.05µm) | Contact Finish | Tin |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Straight |
| Actuator Material | Polyamide (PA6T), Nylon 6T | Actuator Color | Black |
