Weidmuller
| Part Number | 1727710000 | Manufacturer | Weidmuller |
|---|---|---|---|

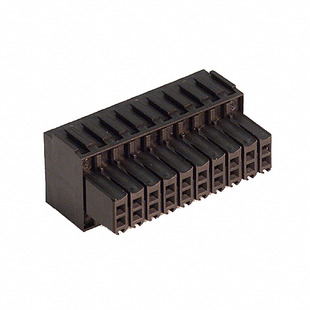

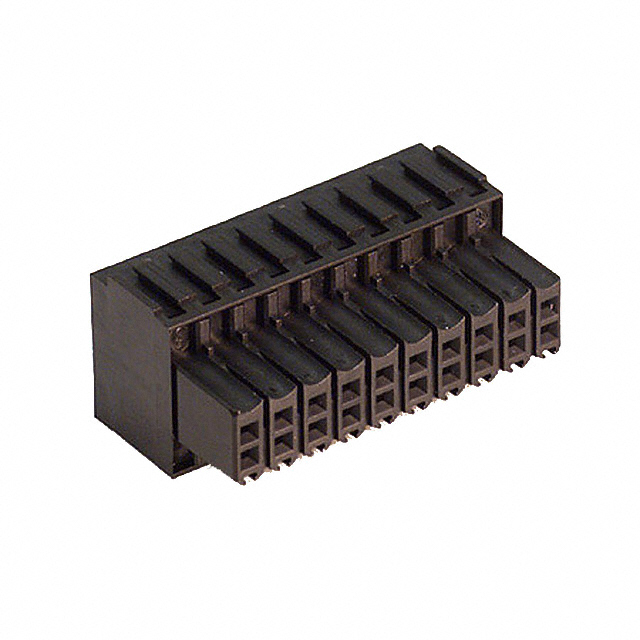

| Description | TERM BLOCK PLUG 20POS STR 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6245 pcs | Data sheet | 1727710000.pdf |
| Wire Strip Length | 7mm | Wire Gauge or Range - mm² | 0.2-1mm² |
| Wire Gauge or Range - AWG | 16-28 AWG | Voltage - UL | 300V |
| Voltage - IEC | 200V | Type | Plug, Female Sockets |
| Torque - Screw | - | Termination Style | Screwless - Spring Cage, Tension Clamp |
| Series | Omnimate B2L | Screw Size | - |
| Positions Per Level | 10 | Plug Wire Entry | 180° |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | 281-1854 B2L3.5/20 |
Operating Temperature | -50°C ~ 100°C |
| Number of Positions | 20 | Number of Levels | 2 |
| Mounting Type | Free Hanging (In-Line) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.618" (15.70mm) | Ingress Protection | IP20 |
| Housing Material | Polybutylene Terephthalate (PBT) | Header Orientation | - |
| Features | - | Detailed Description | 20 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line) |
| Current - UL | 10A | Current - IEC | 10.3A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
