Weidmuller
| Part Number | 1727700000 | Manufacturer | Weidmuller |
|---|---|---|---|

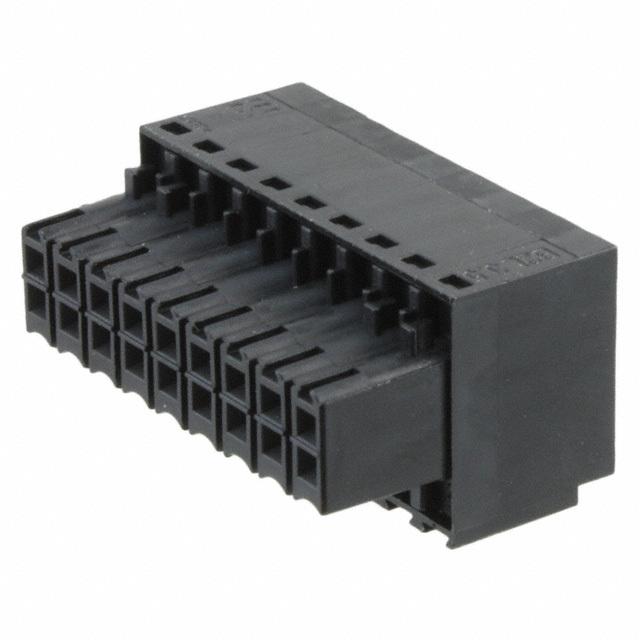

| Description | TERM BLOCK PLUG 18POS STR 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6454 pcs | Data sheet | 1727700000.pdf |
| Wire Strip Length | 7mm | Wire Gauge or Range - mm² | 0.2-1mm² |
| Wire Gauge or Range - AWG | 16-28 AWG | Voltage - UL | 300V |
| Voltage - IEC | 200V | Type | Plug, Female Sockets |
| Torque - Screw | - | Termination Style | Screwless - Spring Cage, Tension Clamp |
| Series | Omnimate B2L | Screw Size | - |
| Positions Per Level | 9 | Plug Wire Entry | 180° |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | 1727700000-ND 281-3125 |
Operating Temperature | -50°C ~ 100°C |
| Number of Positions | 18 | Number of Levels | 2 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.618" (15.70mm) |
| Ingress Protection | IP20 | Housing Material | Polybutylene Terephthalate (PBT) |
| Header Orientation | - | Features | - |
| Detailed Description | 18 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line) | Current - UL | 10A |
| Current - IEC | 10.3A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Black |
