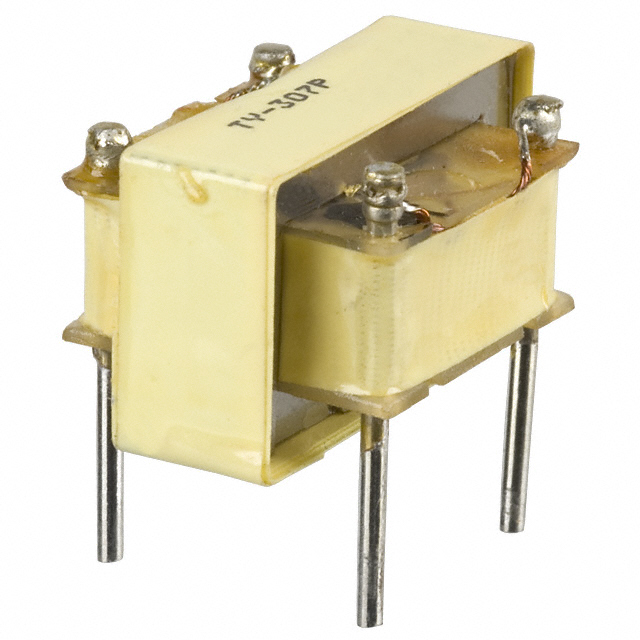

TY-307P

Triad Magnetics

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TY-307P
Manufacturer/Brand:	Triad Magnetics
Product description	TRANSF 600 OHM 0MA DC TEL
Datasheets:	TY-307P.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	17107 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 17107 pcs

Reference Price (In US Dollars)

1 pcs: $2.063

10 pcs: $1.567

25 pcs: $1.525

50 pcs: $1.402

100 pcs: $1.319

250 pcs: $1.278

500 pcs: $1.237

1000 pcs: $1.196

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.063

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TY-307P

Part Number	TY-307P	Manufacturer	Triad Magnetics
Description	TRANSF 600 OHM 0MA DC TEL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17107 pcs	Data sheet	TY-307P.pdf
Weight	-	Voltage - Isolation	1500VAC
Turns Ratio - Primary:Secondary	1:1.07	Transformer Type	Data/Voice Coupling
Termination Style	PC Pin	Size / Dimension	0.670" L x 0.781" W (17.02mm x 19.84mm)
Series	TY	Return Loss	26dB Typ
Power Level	-45dB ~ 7dB	Packaging	Bulk
Other Names	10621 237-1130 TY307P	Operating Temperature	-
Mounting Type	Through Hole	Manufacturer Standard Lead Time	1 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insertion Loss	1dB Typ
Impedance - Secondary (Ohms)	600	Impedance - Primary (Ohms)	600
Height - Seated (Max)	0.470" (11.94mm)	Frequency Response	±0.5dB
Frequency Range	300Hz ~ 3.5kHz	DC Resistance (DCR) - Secondary	-
DC Resistance (DCR) - Primary	-	Approvals	-
