Triad Magnetics

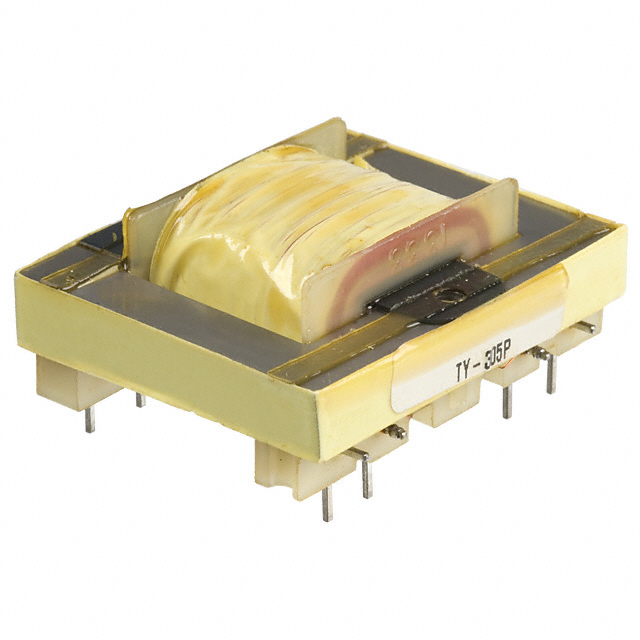

| Part Number | TY-305P | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | TRANSF 600 OHM 100MA DC TEL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5705 pcs | Data sheet | TY-305P.pdf |
| Weight | - | Voltage - Isolation | 1500VAC |
| Turns Ratio - Primary:Secondary | 1:0.90 | Transformer Type | Data/Voice Coupling |
| Termination Style | PC Pin | Size / Dimension | 1.650" L x 1.375" W (41.91mm x 34.93mm) |
| Series | TY | Return Loss | 10dB Typ |
| Power Level | -45dB ~ 7dB | Packaging | Bulk |
| Other Names | 10619 237-1128 TY305P |
Operating Temperature | - |
| Mounting Type | Through Hole | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 1.5dB Typ |
| Impedance - Secondary (Ohms) | 600 | Impedance - Primary (Ohms) | 600 |
| Height - Seated (Max) | 0.680" (17.27mm) | Frequency Response | ±0.5dB |
| Frequency Range | 300Hz ~ 3.5kHz | DC Resistance (DCR) - Secondary | - |
| DC Resistance (DCR) - Primary | - | Approvals | - |
