F-160P

Triad Magnetics

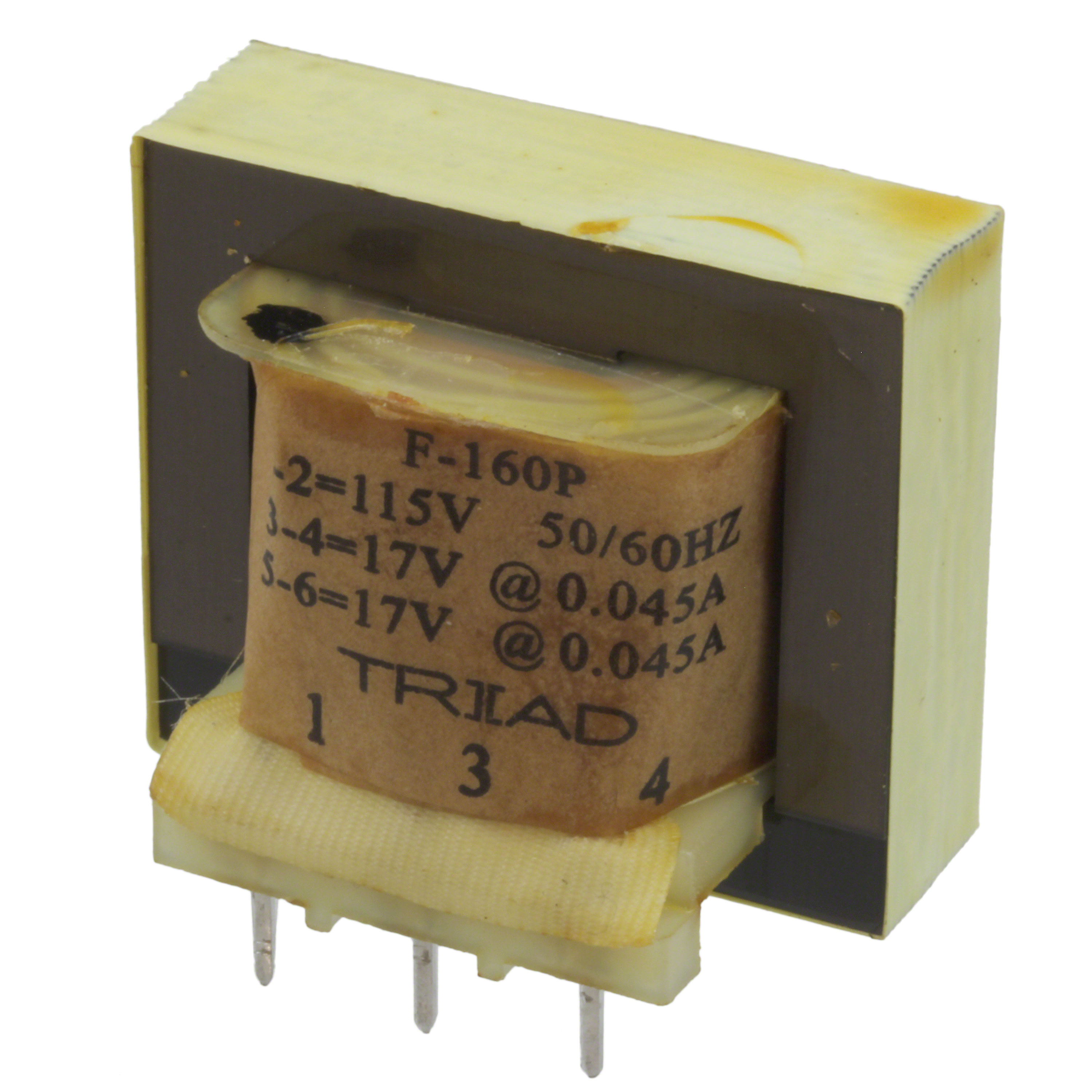

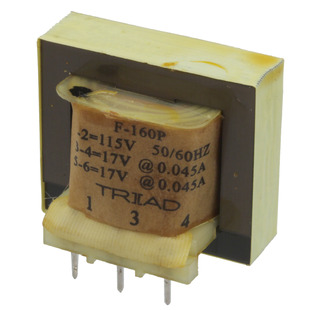

Image may be representation. See specifications for product details.

Product Overview

Part Number:	F-160P
Manufacturer/Brand:	Triad Magnetics
Product description	POWER TRANSFORMER PCB MOUNT
Datasheets:	F-160P.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	20155 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 20155 pcs

Reference Price (In US Dollars)

84 pcs: $1.781

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.781

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of F-160P

Part Number	F-160P	Manufacturer	Triad Magnetics
Description	POWER TRANSFORMER PCB MOUNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20155 pcs	Data sheet	F-160P.pdf
Weight	0.219 lb (99.34g)	Voltage - Secondary (Full Load)	Parallel 17V, Series 34V
Voltage - Primary	115V	Voltage - Isolation	1500Vrms
Type	Laminated Core	Termination Style	PC Pin
Size / Dimension	35.31mm L x 39.67mm W	Series	Single Primary
Secondary Winding(s)	Dual	Primary Winding(s)	Single
Power - Max	1.5 VA	Other Names	237-1921
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	30.15mm	Current - Output (Max)	Parallel 90mA, Series 45mA
Center Tap	No
