HomeProductsTransformersPower TransformersF-156XP

F-156XP

Triad MagneticsTriad Magnetics

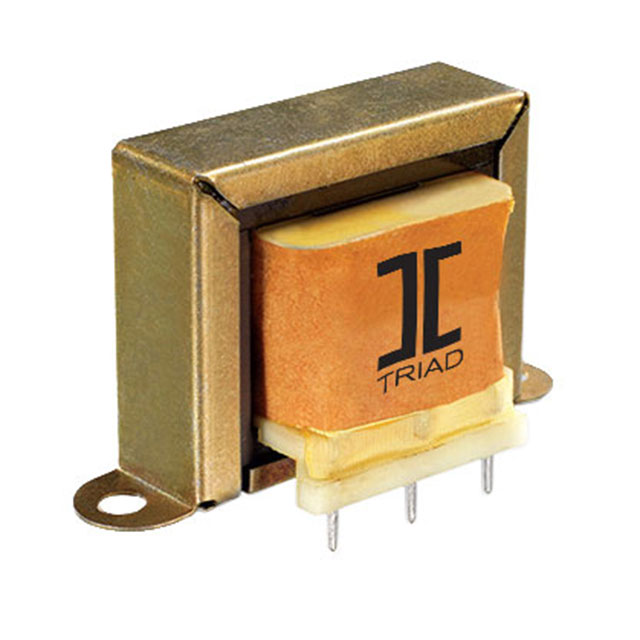

F-156XP Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: F-156XP
Manufacturer/Brand: Triad Magnetics
Product description PC MOUNT POWER TRANSFORMER
Datasheets: F-156XP.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 10882 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 10882 pcs
Reference Price (In US Dollars)
1 pcs
$3.558
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$3.558

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of F-156XP

Part Number F-156XP Manufacturer Triad Magnetics
Description PC MOUNT POWER TRANSFORMER Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 10882 pcs Data sheet F-156XP.pdf
Weight 0.657 lb (298.01g) Voltage - Secondary (Full Load) Parallel 58V, Series 116V
Voltage - Primary 115V Voltage - Isolation 1500Vrms
Type Laminated Core Termination Style PC Pin
Size / Dimension 71.42mm L x 37.29mm W Series -
Secondary Winding(s) Dual Primary Winding(s) Single
Power - Max 7.5 VA Mounting Type Through Hole
Manufacturer Standard Lead Time 16 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Height - Seated (Max) 41.28mm Current - Output (Max) Parallel 130mA, Series 85mA
Center Tap No
