TLP7820(TL,E

Toshiba Semiconductor and Storage

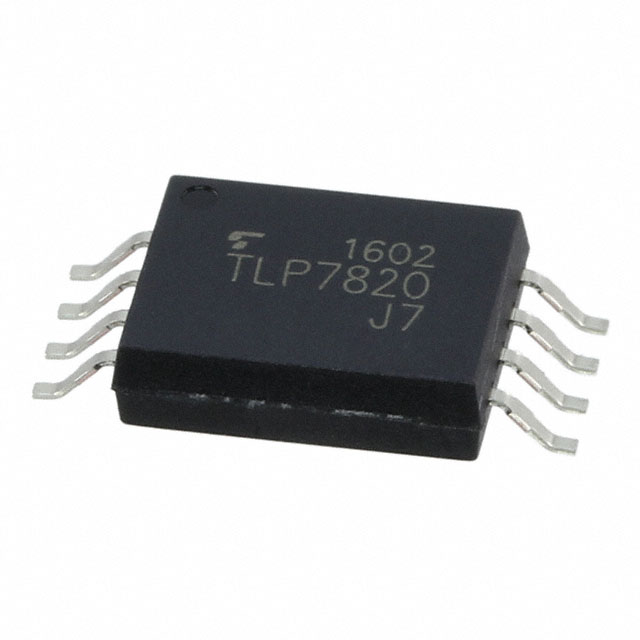

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TLP7820(TL,E
Manufacturer/Brand:	Toshiba Semiconductor and Storage
Product description	IC OP AMP ISOLATION 230KHZ 8SOL
Datasheets:	TLP7820(TL,E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15185 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 15185 pcs

Reference Price (In US Dollars)

1 pcs: $2.254

10 pcs: $1.88

25 pcs: $1.579

100 pcs: $1.353

250 pcs: $1.203

500 pcs: $1.09

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.254

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TLP7820(TL,E

Part Number	TLP7820(TL,E	Manufacturer	Toshiba Semiconductor and Storage
Description	IC OP AMP ISOLATION 230KHZ 8SOL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15185 pcs	Data sheet	TLP7820(TL,E.pdf
Voltage - Supply, Single/Dual (±)	4.5 V ~ 5.5 V	Voltage - Input Offset	900µV
Supplier Device Package	8-SOL	Slew Rate	-
Series	-	Packaging	Cut Tape (CT)
Package / Case	8-SOIC (0.295", 7.50mm Width)	Output Type	Differential
Other Names	TLP7820(TLECT	Operating Temperature	-40°C ~ 105°C
Number of Circuits	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	Isolation Amplifier 1 Circuit Differential 8-SOL	Current - Supply	12mA
Current - Input Bias	5.5nA	Amplifier Type	Isolation
-3db Bandwidth	230kHz
