Toshiba Semiconductor and Storage

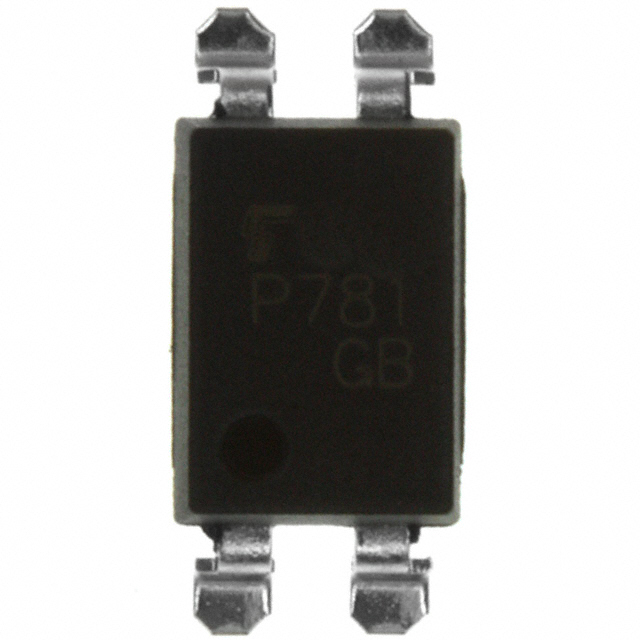

| Part Number | TLP781(GB-LF6,F) | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | OPTOISOLATR 5KV TRANSISTOR 4-SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5160 pcs | Data sheet | TLP781(GB-LF6,F).pdf |
| Voltage - Output (Max) | 80V | Voltage - Isolation | 5000Vrms |
| Voltage - Forward (Vf) (Typ) | 1.15V | Vce Saturation (Max) | 400mV |
| Turn On / Turn Off Time (Typ) | 3µs, 3µs | Supplier Device Package | 4-SMD |
| Series | - | Rise / Fall Time (Typ) | 2µs, 3µs |
| Packaging | Tube | Package / Case | 4-SMD, Gull Wing |
| Output Type | Transistor | Other Names | TLP781(GB-LF6-F) TLP781GB-LF6F TLP781GB-LF6FCT TLP781GB-LF6FCT-ND TLP781GBLF6F |
| Operating Temperature | -55°C ~ 110°C | Number of Channels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD | Current Transfer Ratio (Min) | 100% @ 5mA |
| Current Transfer Ratio (Max) | 600% @ 5mA | Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 60mA |
