Toshiba Semiconductor and Storage

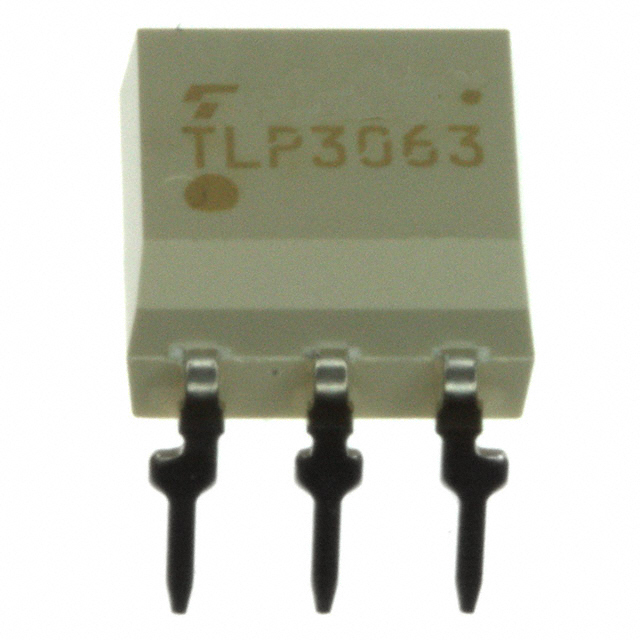

| Part Number | TLP3063SCF | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | OPTOISOLATOR 5KV TRIAC 6DIP 5L | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5028 pcs | Data sheet | TLP3063SCF.pdf |
| Zero Crossing Circuit | Yes | Voltage - Off State | 600V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 1.15V |
| Turn On Time | - | Supplier Device Package | 6-DIP (Cut), 5 Lead |
| Static dV/dt (Min) | 200V/µs | Series | - |
| Packaging | Tube | Package / Case | 6-DIP (0.300", 7.62mm), 5 Leads |
| Output Type | Triac | Other Names | Q10698680 Q11337426 Q9665499 TLP3063(S) TLP3063(S,C,F) TLP3063(S,C,F,T) TLP3063(S,F) TLP3063(SCF) TLP3063(SCF)-ND TLP3063S TLP3063S-ND TLP3063SF TLP3063SF-ND |
| Operating Temperature | -40°C ~ 100°C | Number of Channels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP (Cut), 5 Lead |
| Current - On State (It (RMS)) (Max) | 100mA | Current - LED Trigger (Ift) (Max) | 5mA |
| Current - Hold (Ih) | 600µA (Typ) | Current - DC Forward (If) (Max) | 50mA |
| Approvals | BSI, SEMKO, UR |
