TLP3052(S,C,F)

Toshiba Semiconductor and Storage

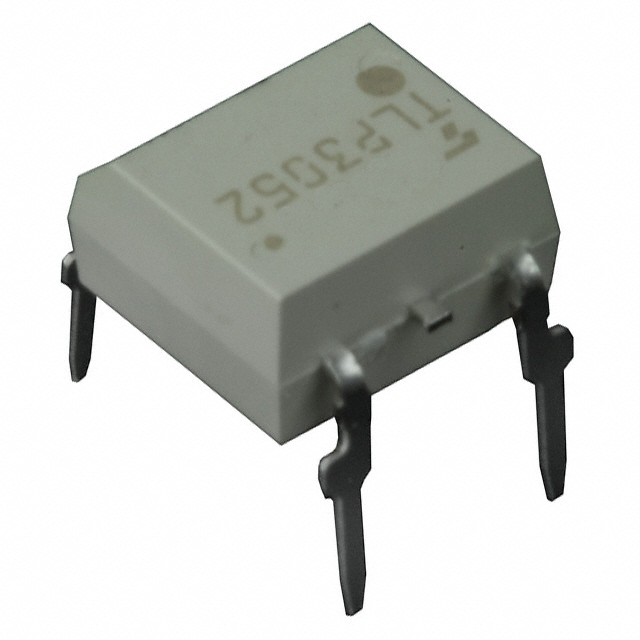

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TLP3052(S,C,F)
Manufacturer/Brand:	Toshiba Semiconductor and Storage
Product description	OPTOISOLATOR 5KV TRIAC 6DIP 5L
Datasheets:	TLP3052(S,C,F).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6537 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 6537 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TLP3052(S,C,F)

Part Number	TLP3052(S,C,F)	Manufacturer	Toshiba Semiconductor and Storage
Description	OPTOISOLATOR 5KV TRIAC 6DIP 5L	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6537 pcs	Data sheet	TLP3052(S,C,F).pdf
Zero Crossing Circuit	No	Voltage - Off State	600V
Voltage - Isolation	5000Vrms	Voltage - Forward (Vf) (Typ)	1.15V
Turn On Time	-	Supplier Device Package	6-DIP (Cut), 5 Lead
Static dV/dt (Min)	500V/µs (Typ)	Series	-
Packaging	Tube	Package / Case	6-DIP (0.300", 7.62mm), 5 Leads
Output Type	Triac	Other Names	TLP3052 (S,C,F) TLP3052(S) TLP3052(S,C,F,T) TLP3052(S,F) TLP3052(S,F,T) TLP3052(SCF) TLP3052S TLP3052S-ND TLP3052SCF TLP3052SF TLP3052SF-ND
Operating Temperature	-40°C ~ 100°C	Number of Channels	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP (Cut), 5 Lead
Current - On State (It (RMS)) (Max)	100mA	Current - LED Trigger (Ift) (Max)	10mA
Current - Hold (Ih)	1mA (Typ)	Current - DC Forward (If) (Max)	50mA
Approvals	BSI, SEMKO, UR
