TLP281-4(TP,J,F)

Toshiba Semiconductor and Storage

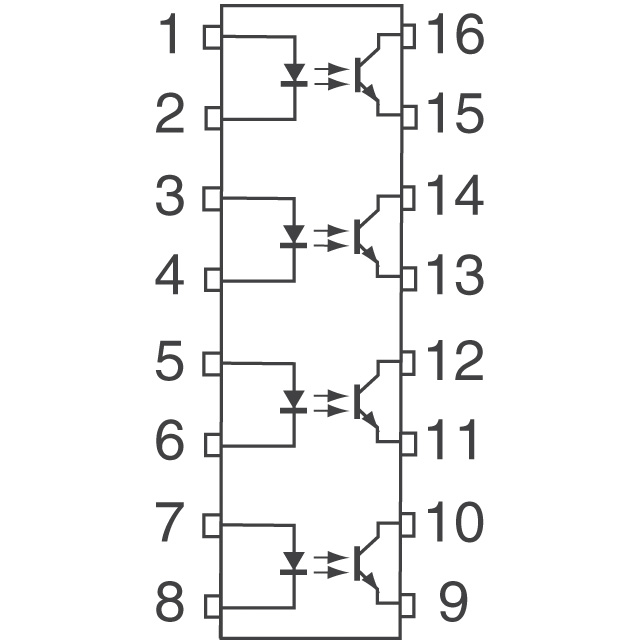

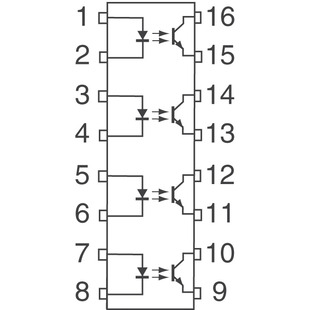

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TLP281-4(TP,J,F)
Manufacturer/Brand:	Toshiba Semiconductor and Storage
Product description	OPTOISO 2.5KV 4CH TRANS 16-SOP
Datasheets:	TLP281-4(TP,J,F).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4269 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4269 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TLP281-4(TP,J,F)

Part Number	TLP281-4(TP,J,F)	Manufacturer	Toshiba Semiconductor and Storage
Description	OPTOISO 2.5KV 4CH TRANS 16-SOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4269 pcs	Data sheet	TLP281-4(TP,J,F).pdf
Voltage - Output (Max)	80V	Voltage - Isolation	2500Vrms
Voltage - Forward (Vf) (Typ)	1.15V	Vce Saturation (Max)	400mV
Turn On / Turn Off Time (Typ)	3µs, 3µs	Supplier Device Package	16-SOP
Series	-	Rise / Fall Time (Typ)	2µs, 3µs
Packaging	Tape & Reel (TR)	Package / Case	16-SOIC (0.173", 4.40mm Width)
Output Type	Transistor	Other Names	TLP281-4 (TP,J,F) TLP281-4JFTR TLP2814TPJF
Operating Temperature	-55°C ~ 100°C	Number of Channels	4
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	DC
Detailed Description	Optoisolator Transistor Output 2500Vrms 4 Channel 16-SOP	Current Transfer Ratio (Min)	50% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA	Current - Output / Channel	50mA
Current - DC Forward (If) (Max)	50mA
