TK55S10N1,LQ

Toshiba Semiconductor and Storage

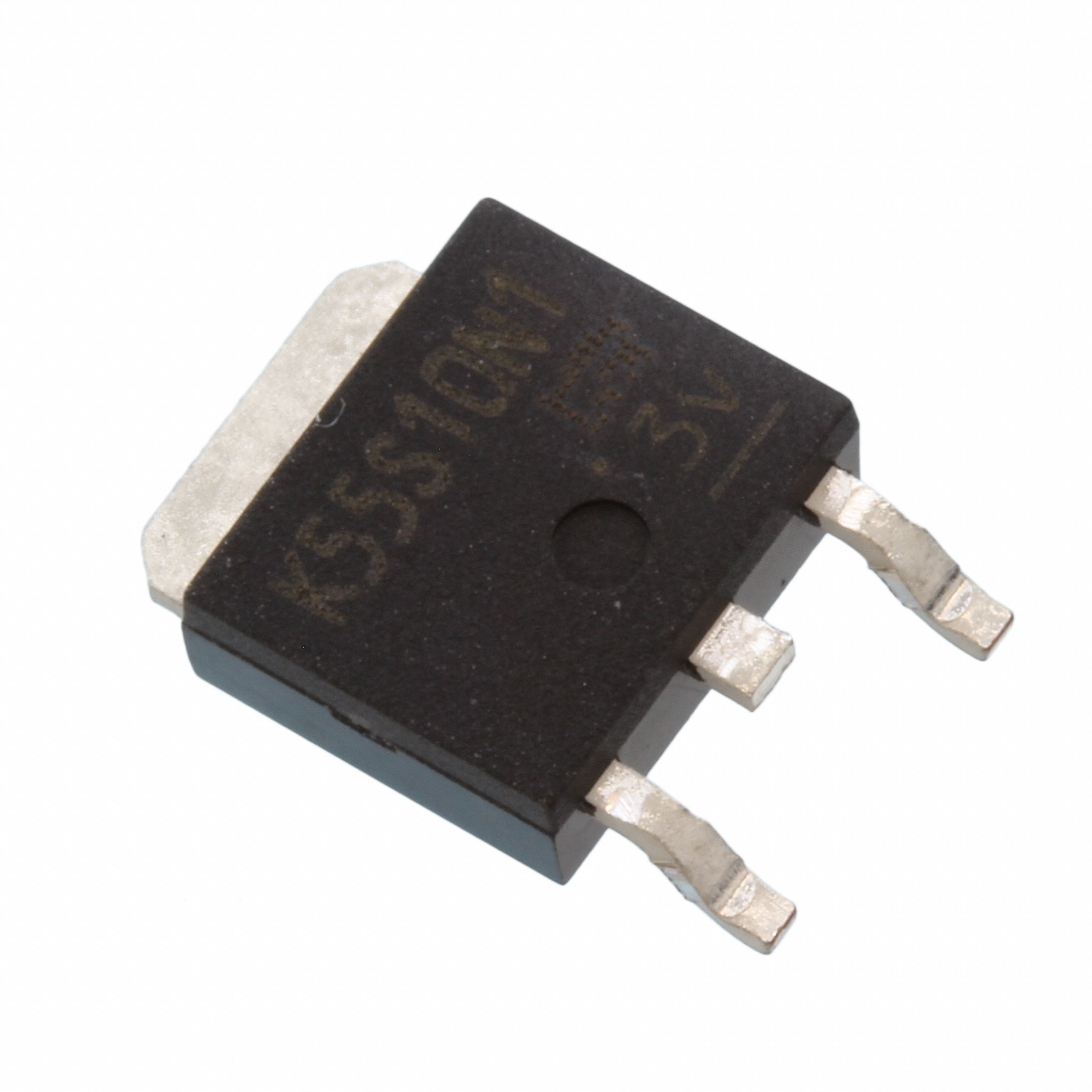

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TK55S10N1,LQ
Manufacturer/Brand:	Toshiba Semiconductor and Storage
Product description	MOSFET N-CH 100V 55A DPAK
Datasheets:	TK55S10N1,LQ.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	60004 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 60004 pcs

Reference Price (In US Dollars)

2000 pcs: $0.488

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.488

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TK55S10N1,LQ

Part Number	TK55S10N1,LQ	Manufacturer	Toshiba Semiconductor and Storage
Description	MOSFET N-CH 100V 55A DPAK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	60004 pcs	Data sheet	TK55S10N1,LQ.pdf
Vgs(th) (Max) @ Id	4V @ 500µA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	DPAK+
Series	U-MOSVIII-H	Rds On (Max) @ Id, Vgs	6.5 mOhm @ 27.5A, 10V
Power Dissipation (Max)	157W (Tc)	Packaging	Tape & Reel (TR)
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63	Other Names	TK55S10N1,LQ(O TK55S10N1LQTR
Operating Temperature	175°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	3280pF @ 10V	Gate Charge (Qg) (Max) @ Vgs	49nC @ 10V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	10V	Drain to Source Voltage (Vdss)	100V
Detailed Description	N-Channel 100V 55A (Ta) 157W (Tc) Surface Mount DPAK+	Current - Continuous Drain (Id) @ 25°C	55A (Ta)
