Tamura

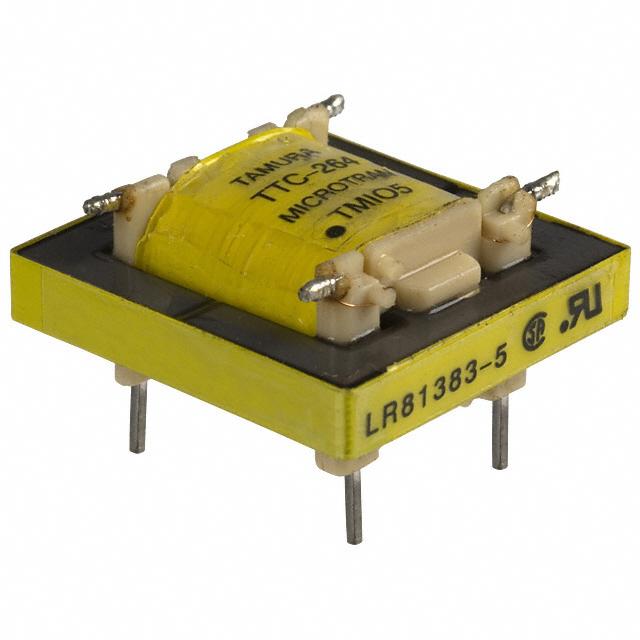

| Part Number | TTC-264 | Manufacturer | Tamura |
|---|---|---|---|
| Description | TRANSF TELE 600/470 OHM 100MADC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14603 pcs | Data sheet | TTC-264.pdf |
| Weight | - | Voltage - Isolation | 1500VRMS @ 1 Minute |
| Turns Ratio - Primary:Secondary | 1:1 | Transformer Type | Data/Voice Coupling |
| Termination Style | PC Pin | Size / Dimension | 0.945" L x 0.906" W (24.00mm x 23.00mm) |
| Series | TTC | Return Loss | - |
| Power Level | -20dB ~ 4dB | Packaging | Bulk |
| Other Names | MT4123 TM105 TM105(BOX) TM105(BULK) TTC264 |
Operating Temperature | - |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 26 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 2.5dB Max @ 1kHz | Impedance - Secondary (Ohms) | 470 |
| Impedance - Primary (Ohms) | 600 | Height - Seated (Max) | 0.472" (12.00mm) |
| Frequency Response | ±1dB ~ ±4dB | Frequency Range | 300Hz ~ 3.5kHz |
| DC Resistance (DCR) - Secondary | 120 Ohm | DC Resistance (DCR) - Primary | 108 Ohm |
| Approvals | CSA-C22.2 No. 66-M1988, UL1459 |
