Tamura

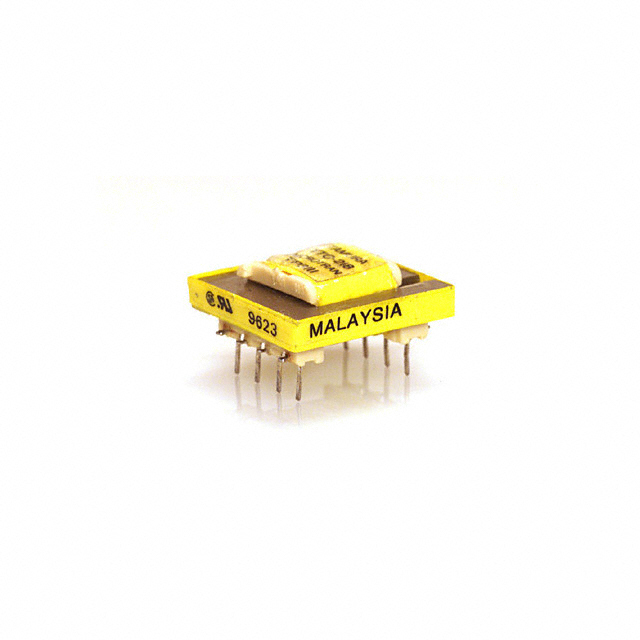

| Part Number | TTC-218 | Manufacturer | Tamura |
|---|---|---|---|
| Description | TRANSF TELE COUP 600 OHM 50MADC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6615 pcs | Data sheet | TTC-218.pdf |
| Weight | - | Voltage - Isolation | 1500VRMS @ 1 Minute |
| Turns Ratio - Primary:Secondary | 1:1 | Transformer Type | Data/Voice Coupling |
| Termination Style | PC Pin | Size / Dimension | 0.839" L x 0.760" W (21.30mm x 19.30mm) |
| Series | TTC | Return Loss | - |
| Power Level | -45dB ~ 7dB | Packaging | Bulk |
| Other Names | MT4120 TP3111 TP3111(BOX) TP3111(BULK) |
Operating Temperature | - |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 1.8dB Max @ 2kHz |
| Impedance - Secondary (Ohms) | 600 | Impedance - Primary (Ohms) | 600 |
| Height - Seated (Max) | 0.346" (8.80mm) | Frequency Response | -1.8dB ~ 0.5dB |
| Frequency Range | 660Hz ~ 3.5kHz | DC Resistance (DCR) - Secondary | 76 Ohm |
| DC Resistance (DCR) - Primary | 49 Ohm | Approvals | CSA-C22.2 No. 66-M1988, UL1863 |
