LGJ7045TC-101M-D

TDK Corporation

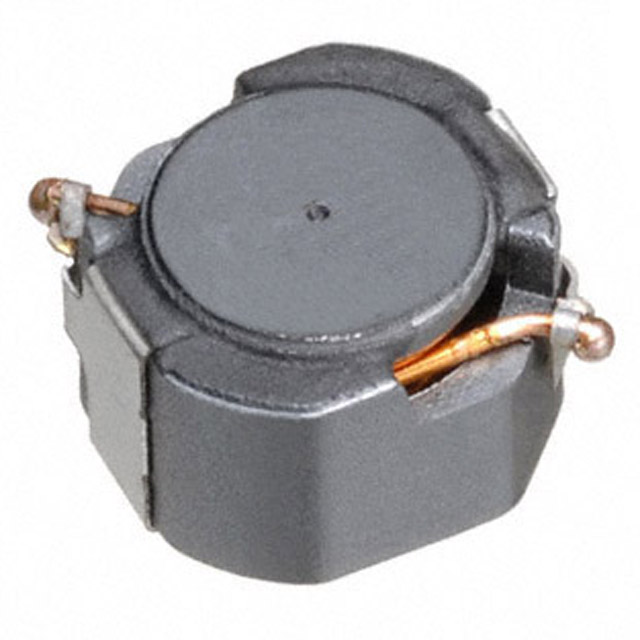

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LGJ7045TC-101M-D
Manufacturer/Brand:	TDK Corporation
Product description	FIXED IND 100UH 750MA 330 MOHM
Datasheets:	LGJ7045TC-101M-D.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	50362 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 50362 pcs

Reference Price (In US Dollars)

1000 pcs: $0.772

3000 pcs: $0.747

5000 pcs: $0.721

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.772

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LGJ7045TC-101M-D

Part Number	LGJ7045TC-101M-D	Manufacturer	TDK Corporation
Description	FIXED IND 100UH 750MA 330 MOHM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	50362 pcs	Data sheet	LGJ7045TC-101M-D.pdf
Type	Wirewound	Tolerance	±20%
Size / Dimension	0.283" L x 0.272" W (7.20mm x 6.90mm)	Shielding	Shielded
Series	LGJ	Ratings	AEC-Q200
Q @ Freq	-	Packaging	Tape & Reel (TR)
Package / Case	Nonstandard	Other Names	445-15062-2
Operating Temperature	-40°C ~ 150°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Core	Ferrite
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	100kHz	Inductance	100µH
Height - Seated (Max)	0.177" (4.50mm)	Frequency - Self Resonant	-
Detailed Description	100µH Shielded Wirewound Inductor 750mA 330 mOhm Nonstandard	DC Resistance (DCR)	330 mOhm
Current Rating	750mA	Current - Saturation	900mA
