LGJ45B-101-2P-TL003

TDK Corporation

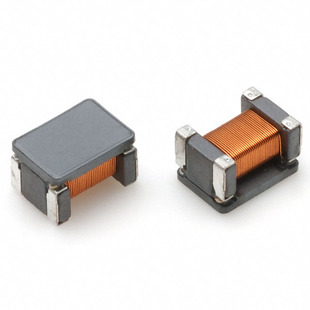

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LGJ45B-101-2P-TL003
Manufacturer/Brand:	TDK Corporation
Product description	CMC 150MA 2LN 2KOHM SMD AEC-Q200
Datasheets:	LGJ45B-101-2P-TL003.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	29383 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 29383 pcs

Reference Price (In US Dollars)

2500 pcs: $1.214

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.214

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LGJ45B-101-2P-TL003

Part Number	LGJ45B-101-2P-TL003	Manufacturer	TDK Corporation
Description	CMC 150MA 2LN 2KOHM SMD AEC-Q200	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	29383 pcs	Data sheet	LGJ45B-101-2P-TL003.pdf
Voltage Rating - DC	50V	Voltage Rating - AC	-
Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)	Series	LGJ45B
Ratings	AEC-Q200	Packaging	Tape & Reel (TR)
Package / Case	Horizontal, 4 PC Pad	Other Names	445-14986-2
Operating Temperature	-40°C ~ 150°C	Number of Lines	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Impedance @ Frequency	2 kOhms @ 10MHz
Height (Max)	0.118" (3.00mm)	Filter Type	-
Features	-	Detailed Description	2 Line Common Mode Choke Surface Mount 2 kOhms @ 10MHz 150mA DCR 2 Ohm
DC Resistance (DCR) (Max)	2 Ohm	Current Rating (Max)	150mA
Approvals	-
