Sunon

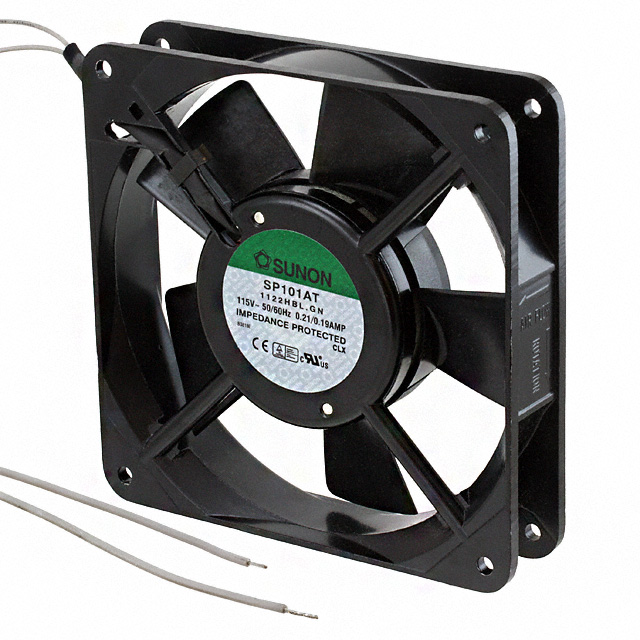

| Part Number | SP101AT-1122HBL.GN | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 119.5X25.5MM 115VAC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4834 pcs | Data sheet | 1.SP101AT-1122HBL.GN.pdf2.SP101AT-1122HBL.GN.pdf3.SP101AT-1122HBL.GN.pdf |
| Width | 25.50mm | Weight | 0.728 lb (330.22g) |
| Voltage Range | - | Voltage - Rated | 115VAC |
| Termination | 2 Wire Leads | Static Pressure | 0.160 in H2O (39.8 Pa) |
| Size / Dimension | Square - 119.5mm L x 119.5mm H | Series | SP |
| RPM | 2300 RPM | Power (Watts) | 18.00W |
| Other Names | 259-1655 SP101AT 1122HBL.GN SP101AT1122HBL.GN |
Operating Temperature | - |
| Noise | 46.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Aluminum | Material - Blade | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.180A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 78.0 CFM (2.18m³/min) |
