Sunon

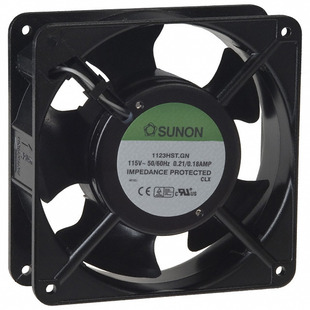

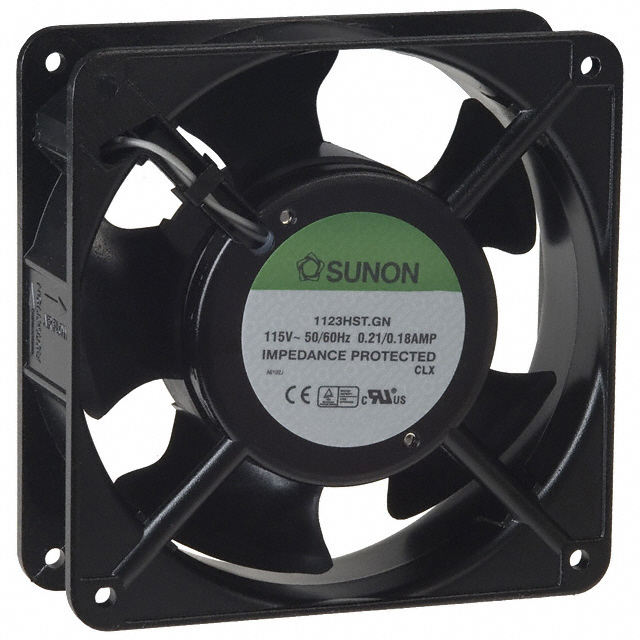

| Part Number | SP101A-1123HST.GN | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 120X38MM 115VAC TERM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5302 pcs | Data sheet | 1.SP101A-1123HST.GN.pdf2.SP101A-1123HST.GN.pdf3.SP101A-1123HST.GN.pdf |
| Width | 38.00mm | Weight | 1.2 lbs (544.3g) |
| Voltage Range | 85 ~ 125VAC | Voltage - Rated | 115VAC |
| Termination | 2 Terminals | Static Pressure | 0.300 in H2O (74.7 Pa) |
| Size / Dimension | Square - 120mm L x 120mm H | Series | SP |
| RPM | 2900 RPM | Power (Watts) | 18.00W |
| Other Names | 259-1388 S115OAMS1T-GRM SP101A 1123HST.GN SP101A1123HST.GN SP101A1123HSTGN |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 48.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Aluminum | Material - Blade | Polybutylene Terephthalate (PBT) |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.180A | Bearing Type | Sleeve |
| Approvals | CE, CUR, TUV, UL | Air Flow | 105.0 CFM (2.94m³/min) |
