Sunon

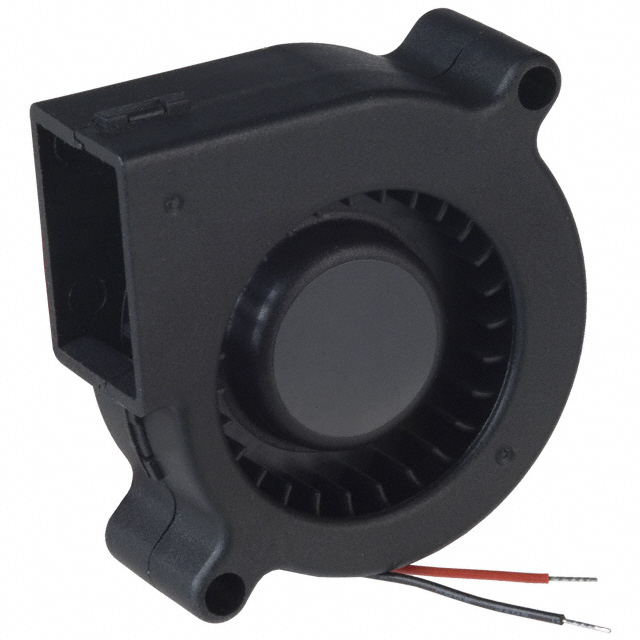

| Part Number | GB1205PKV1-8AY.GN | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN BLOWER 50X20MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8584 pcs | Data sheet | 1.GB1205PKV1-8AY.GN.pdf2.GB1205PKV1-8AY.GN.pdf |
| Width | 20.00mm | Weight | 0.073 lb (33.11g) |
| Voltage Range | 6 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.660 in H2O (164.4 Pa) |
| Size / Dimension | Square/Rounded - 50mm L x 50mm H | Series | MagLev® GB |
| RPM | 5200 RPM | Power (Watts) | 1.50W |
| Other Names | 259-1317 A1250PKV18A-GRJ GB1205PKV18AYGN |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 35.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Polybutylene Terephthalate (PBT) | Material - Blade | Polybutylene Terephthalate (PBT) |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Blower |
| Current Rating | 0.120A | Bearing Type | Vapo-Bearing™ |
| Approvals | CE, CUR, TUV, UL | Air Flow | 5.7 CFM (0.160m³/min) |
