Sunon

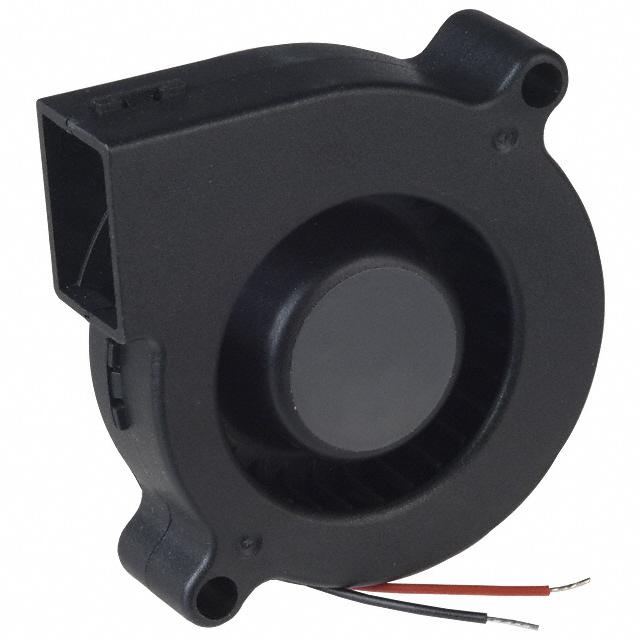

| Part Number | GB1205PHV2-8AY.GN | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN BLOWER 51.6X15MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3354 pcs | Data sheet | 1.GB1205PHV2-8AY.GN.pdf2.GB1205PHV2-8AY.GN.pdf |
| Width | 15.00mm | Weight | 0.066 lb (29.94g) |
| Voltage Range | 6 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.400 in H2O (99.6 Pa) |
| Size / Dimension | Square/Rounded - 50mm L x 50mm H | Series | MagLev® GB |
| RPM | 4000 RPM | Power (Watts) | 700mW |
| Other Names | 259-1315 A1250PHV28AYGVW GB1205PHV28AYGN |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 33.4 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Polybutylene Terephthalate (PBT) | Material - Blade | Polybutylene Terephthalate (PBT) |
| Lifetime @ Temp. | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | - |
| Fan Type | Blower | Current Rating | 0.060A |
| Bearing Type | Vapo-Bearing™ | Approvals | CE, CUR, TUV, UL |
| Air Flow | 3.0 CFM (0.084m³/min) |
