Sunon

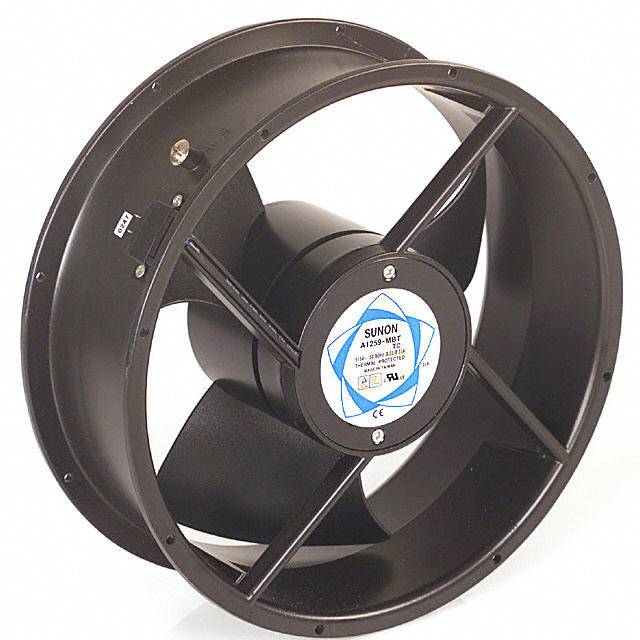

| Part Number | A1259MBT-TC | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 254X89MM 115VAC TERM | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 6316 pcs | Data sheet | 1.A1259MBT-TC.pdf2.A1259MBT-TC.pdf |
| Width | 89.00mm | Weight | 4.4 lbs (2kg) |
| Voltage Range | 80 ~ 125VAC | Voltage - Rated | 115VAC |
| Termination | 2 Terminals | Static Pressure | 0.360 in H2O (89.6 Pa) |
| Size / Dimension | Round - 254mm Dia | Series | A |
| RPM | 1600 RPM | Power (Watts) | 23.00W |
| Other Names | 259-1110 A1259-MBT-TC A1259MBTTC Z115P0M9B2T--S |
Operating Temperature | 14 ~ 176°F (-10 ~ 80°C) |
| Noise | 52.0 dB(A) | Material - Frame | Aluminum |
| Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | 50000 Hrs @ 25°C |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.230A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 665.0 CFM (18.62m³/min) |
