Sunon

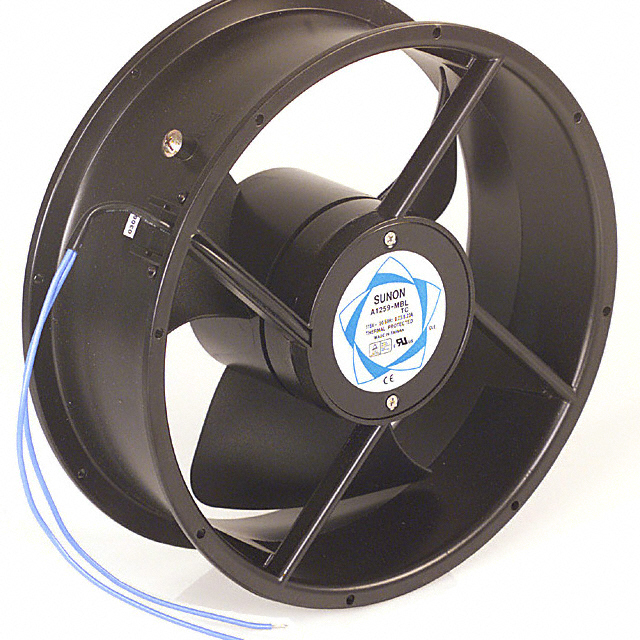

| Part Number | A1259HBL-TC | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 254X89MM 115VAC WIRE | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 3578 pcs | Data sheet | A1259HBL-TC.pdf |
| Width | 89.00mm | Weight | 4.4 lbs (2kg) |
| Voltage Range | 80 ~ 125VAC | Voltage - Rated | 115VAC |
| Termination | 2 Wire Leads | Static Pressure | 0.370 in H2O (92.2 Pa) |
| Size / Dimension | Round - 254mm Dia | Series | A |
| RPM | 2000 RPM | Power (Watts) | 68.0W |
| Other Names | 259-1109 A1259-MBL-TC A1259HBLTC A1259MBLTC Z115P0M9B1L--S |
Operating Temperature | 14 ~ 176°F (-10 ~ 80°C) |
| Noise | 56.0 dB(A) | Material - Frame | Aluminum |
| Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.600A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 806.0 CFM (22.57m³/min) |
