Sunon

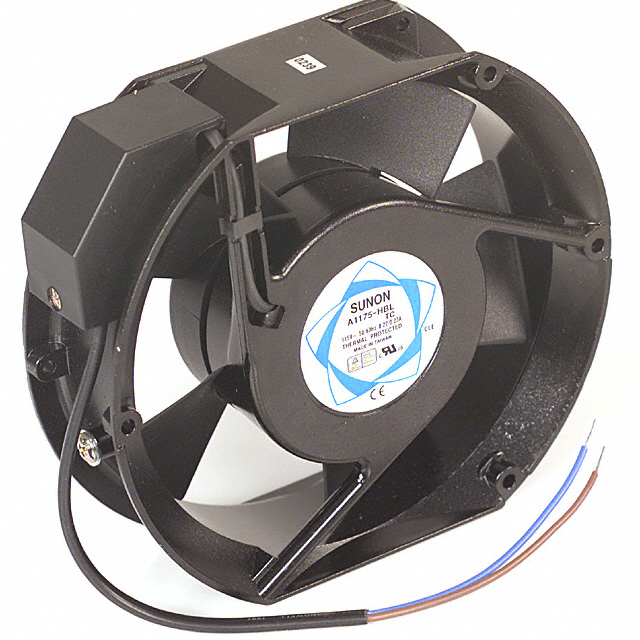

| Part Number | A1175HBL-TC | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 171X51MM 115VAC WIRE | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4590 pcs | Data sheet | 1.A1175HBL-TC.pdf2.A1175HBL-TC.pdf |
| Width | 51.00mm | Weight | 2 lbs (907.2g) |
| Voltage Range | 75 ~ 125VAC | Voltage - Rated | 115VAC |
| Termination | 2 Wire Leads | Static Pressure | 0.690 in H2O (171.8 Pa) |
| Size / Dimension | Rectangular - 171mm L x 151mm H | Series | A |
| RPM | 3200 RPM | Power (Watts) | 27.00W |
| Other Names | 259-1106 A115H2AQBIT-C-K A1175-HBL-TC A1175HBLTC |
Operating Temperature | 14 ~ 176°F (-10 ~ 80°C) |
| Noise | 58.0 dB(A) | Material - Frame | Aluminum |
| Material - Blade | Polycarbonate (PC) | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.230A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 239.0 CFM (6.69m³/min) |
