Sunon

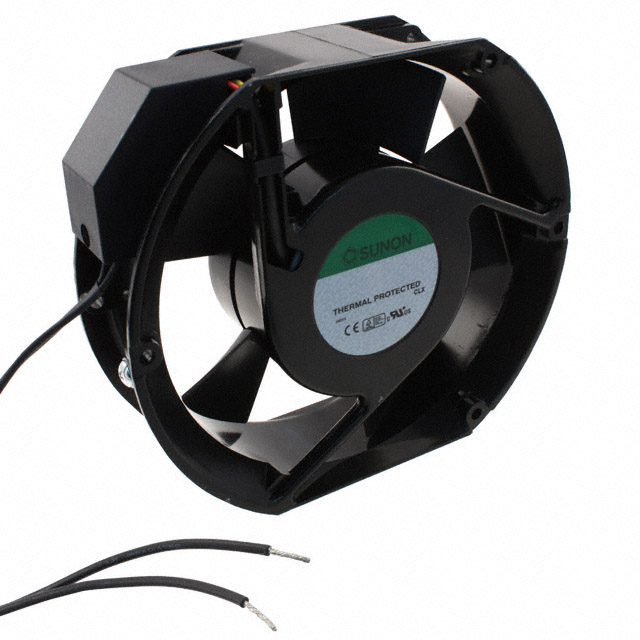

| Part Number | A1175-HBL.TC.GN | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 171X51MM 115VAC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1721 pcs | Data sheet | 1.A1175-HBL.TC.GN.pdf2.A1175-HBL.TC.GN.pdf |
| Width | 51.00mm | Weight | 2 lbs (907.2g) |
| Voltage Range | 75 ~ 125VAC | Voltage - Rated | 115VAC |
| Termination | 2 Wire Leads | Static Pressure | 0.690 in H2O (171.8 Pa) |
| Size / Dimension | Rectangular - 171mm L x 151mm H | Series | A |
| RPM | 3200 RPM | Power (Watts) | 27.00W |
| Other Names | 259-1306 A115H2AQB3LTGRN A1175-HBL TC.GN A1175-HBL-TC.GN A1175-HBLTC.GN A1175HBLTCGN |
Operating Temperature | 14 ~ 176°F (-10 ~ 80°C) |
| Noise | 58.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Aluminum | Material - Blade | Polycarbonate (PC) |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.230A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 239.0 CFM (6.69m³/min) |
