PQ2613-1R0-80-G

Standex-Meder ElectronicsStandex-Meder Electronics

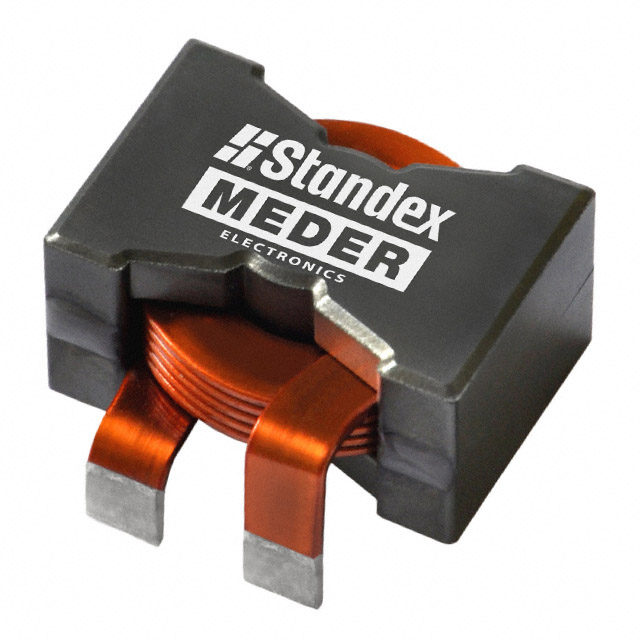

PQ2613-1R0-80-G Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: PQ2613-1R0-80-G
Manufacturer/Brand: Standex-Meder Electronics
Product description FIXED IND 1UH 80A 1.2 MOHM SMD
Datasheets: PQ2613-1R0-80-G.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 6954 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 6954 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of PQ2613-1R0-80-G

Part Number PQ2613-1R0-80-G Manufacturer Standex-Meder Electronics
Description FIXED IND 1UH 80A 1.2 MOHM SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 6954 pcs Data sheet PQ2613-1R0-80-G.pdf
Type Planar Tolerance -
Supplier Device Package - Size / Dimension 1.043" L x 0.748" W (26.50mm x 19.00mm)
Shielding Unshielded Series PQ
Ratings - Q @ Freq -
Packaging Bulk Package / Case Nonstandard
Other Names 374-1375
8026131080		 Operating Temperature -30°C ~ 125°C
Mounting Type Surface Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material - Core Ferrite Lead Free Status / RoHS Status Lead free / RoHS Compliant
Inductance 1µH Height - Seated (Max) 0.520" (13.20mm)
Frequency - Self Resonant - Detailed Description 1µH Unshielded Planar Inductor 80A 1.2 mOhm Nonstandard
DC Resistance (DCR) 1.2 mOhm Current Rating 80A
Current - Saturation 120A
