Souriau Connection Technology

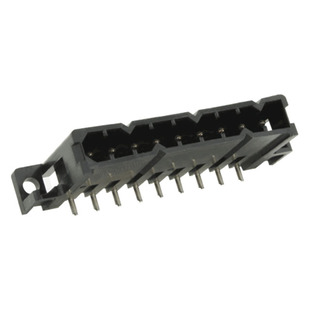

| Part Number | SMS9PH-3TR29 | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | HEADER 9POS RA TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18971 pcs | Data sheet | |
| Voltage - DC Spark Over (Nom) | Copper Alloy | Type Attributes | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Stacking Direction | Male Pin | Shrouding | 0.200" (5.08mm) |
| Shield Termination | Circular | Series | SMS |
| Row Spacing - Mating | Shrouded - 4 Wall | RoHS Status | Bulk |
| Ripple Current - Low Frequency | - | Pitch - Connector | - |
| Overall Contact Length | 0.165" (4.19mm) | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions | 9 |
| Number of Contacts | - | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | All | Manufacturer Part Number | SMS9PH-3TR29 |
| Length - Post (Mating) | - | Insulation Material | Tin |
| Insulation Height | - | Features | Mounting Flange |
| Expanded Description | 9 Positions Header Connector 0.200" (5.08mm) Through Hole, Right Angle Tin | Description | HEADER 9POS RA TH |
| Current Rating | 5A | Current - Max/Contact | - |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | Thermoplastic, Glass Filled | Contact Finish Thickness - Mating | Tin |
| Contact Finish - Post | 47.2µin (1.20µm) | Contact Finish - Mating | 0.370" (9.40mm) |
| Connector Type | Header | Actual Diameter | Black |
