Souriau Connection Technology

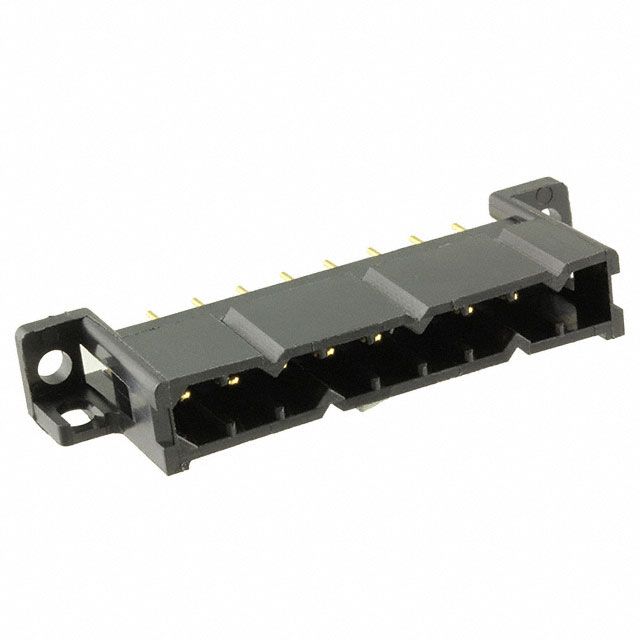

| Part Number | SMS9PHGE4 | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | HEADER 9POS TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8416 pcs | Data sheet | |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | SMS | Row Spacing - Mating | - |
| Pitch - Mating | 0.200" (5.08mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | SMS9PHGE4-ND SOU2207 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 9 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic, Glass Filled | Insulation Height | 0.370" (9.40mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Mounting Flange | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 9 position 0.200" (5.08mm) | Current Rating | 7.5A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.165" (4.19mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 16.0µin (0.41µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
