Souriau Connection Technology

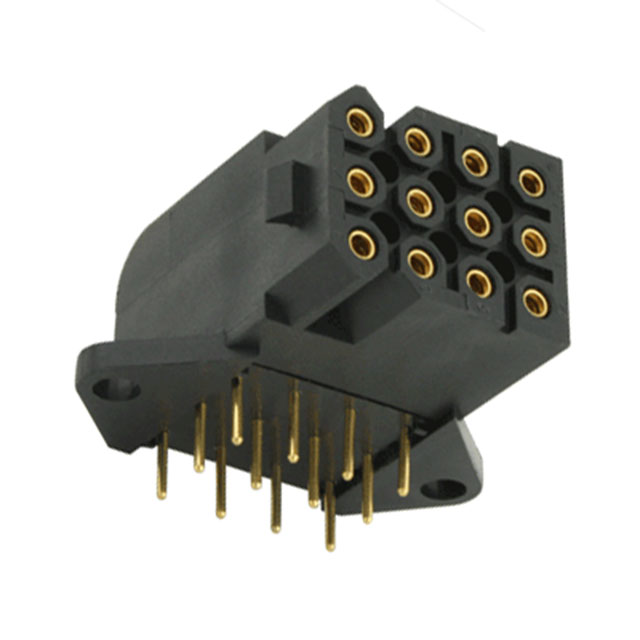

| Part Number | SMS12GE5 | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | SMS RIGHT ANGLE BRDMNT FML CONS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1898 pcs | Data sheet | |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Series | SMS |
| Row Spacing - Mating | 0.200" (5.08mm) | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Bulk | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole, Right Angle |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic, Glass Filled | Insulation Height | 0.677" (17.20mm) |
| Insulation Color | Black | Ingress Protection | IP40 |
| Features | Mounting Flange | Fastening Type | Locking Ramp |
| Detailed Description | 12 Position Receptacle Connector 0.200" (5.08mm) Through Hole, Right Angle Gold | Current Rating | 7.5A |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.177" (4.50mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 16.0µin (0.41µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
