Souriau Connection Technology

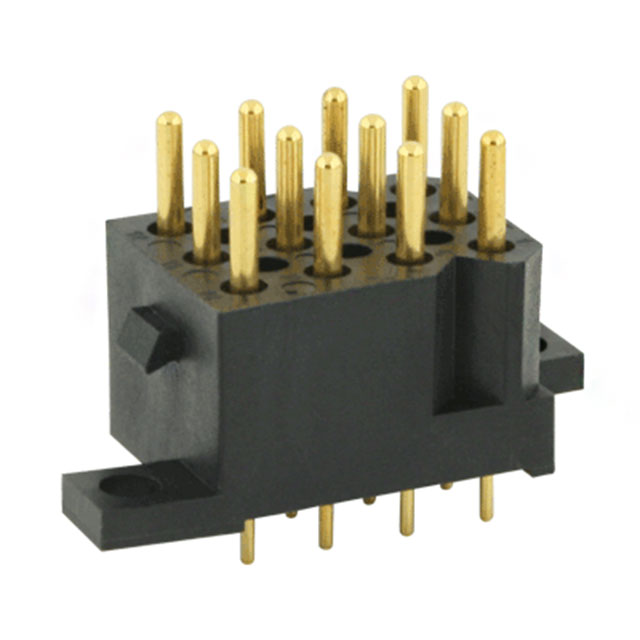

| Part Number | SMS12GE4 | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | QIKMATE 12 POS.STR.BRDMT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4642 pcs | Data sheet | |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Unshrouded |
| Series | SMS | Row Spacing - Mating | 0.200" (5.08mm) |
| Pitch - Mating | 0.200" (5.08mm) | Packaging | Bulk |
| Overall Contact Length | 0.939" (23.85mm) | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester, Glass Filled | Insulation Height | 0.526" (13.35mm) |
| Insulation Color | Black | Ingress Protection | IP40 |
| Features | Mounting Flange | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Through Hole 12 position 0.200" (5.08mm) | Current Rating | 7.5A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Brass | Contact Length - Post | 0.138" (3.50mm) |
| Contact Length - Mating | 0.280" (7.11mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 16.0µin (0.41µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
