Semtech
| Part Number | ECLAMP2422N.TCT | Manufacturer | Semtech |
|---|---|---|---|
| Description | FILTER LC(PI) 2NH/100PF ESD SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 223964 pcs | Data sheet | ECLAMP2422N.TCT.pdf |
| Voltage - Rated | - | Values | L = 2nH, C = 100pF |
| Type | Low Pass | Technology | LC (Pi) |
| Size / Dimension | 0.057" L x 0.039" W (1.45mm x 1.00mm) | Series | EClamp™ |
| Resistance - Channel (Ohms) | 1.4 | Packaging | Tape & Reel (TR) |

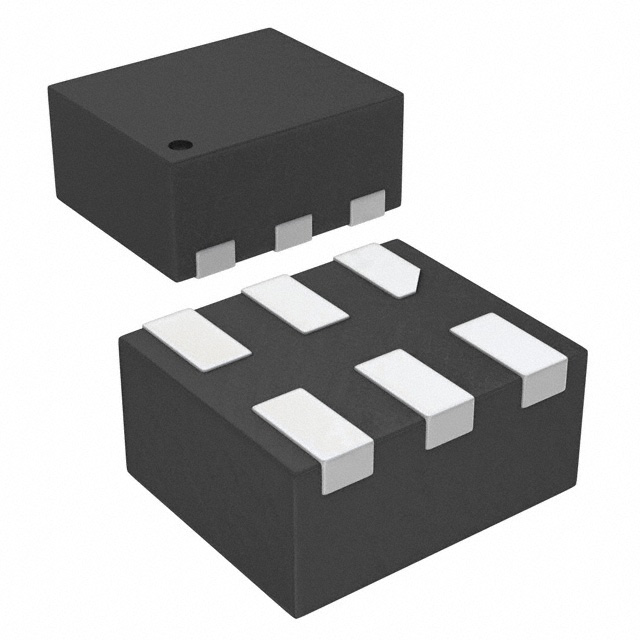

| Package / Case | 6-UFDFN | Other Names | ECLAMP2422N.TCT-ND ECLAMP2422N.TCTTR ECLAMP2422N.TCTTR-ND ECLAMP2422NTCTTR Q3789744 |
| Operating Temperature | -40°C ~ 85°C | Number of Channels | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height | 0.026" (0.65mm) | Filter Order | 3rd |
| ESD Protection | Yes | Detailed Description | LC (Pi) EMI Filter 3rd Order Low Pass 2 Channel L = 2nH, C = 100pF 6-UFDFN |
| Center / Cutoff Frequency | - | Attenuation Value | 20dB @ 800MHz ~ 2.7GHz |
| Applications | Data Lines for Mobile Devices |
