ECLAMP2398P.TCT

Semtech

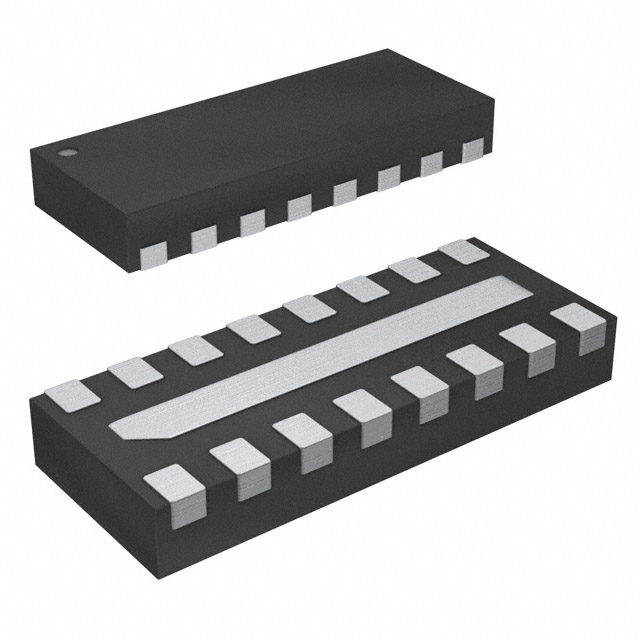

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ECLAMP2398P.TCT
Manufacturer/Brand:	Semtech
Product description	FILTER LC(PI) 19NH/12PF ESD SMD
Datasheets:	ECLAMP2398P.TCT.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	56746 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 56746 pcs

Reference Price (In US Dollars)

1 pcs: $0.639

10 pcs: $0.62

25 pcs: $0.455

50 pcs: $0.444

100 pcs: $0.434

250 pcs: $0.393

500 pcs: $0.382

1000 pcs: $0.331

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.639

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ECLAMP2398P.TCT

Part Number	ECLAMP2398P.TCT	Manufacturer	Semtech
Description	FILTER LC(PI) 19NH/12PF ESD SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	56746 pcs	Data sheet	ECLAMP2398P.TCT.pdf
Voltage - Rated	-	Values	L = 19nH, C = 12pF
Type	Low Pass	Technology	LC (Pi)
Size / Dimension	0.157" L x 0.063" W (4.00mm x 1.60mm)	Series	EClamp™
Resistance - Channel (Ohms)	18	Packaging	Original-Reel®
Package / Case	16-UFDFN Exposed Pad	Other Names	ECLAMP2398PDKR
Operating Temperature	-40°C ~ 85°C	Number of Channels	8
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height	0.026" (0.65mm)	Filter Order	5th
ESD Protection	Yes	Detailed Description	LC (Pi) EMI Filter 5th Order Low Pass 8 Channel L = 19nH, C = 12pF 16-UFDFN Exposed Pad
Center / Cutoff Frequency	150MHz (Cutoff)	Attenuation Value	30dB @ 800MHz ~ 2.7GHz
Applications	Data Lines for Mobile Devices
