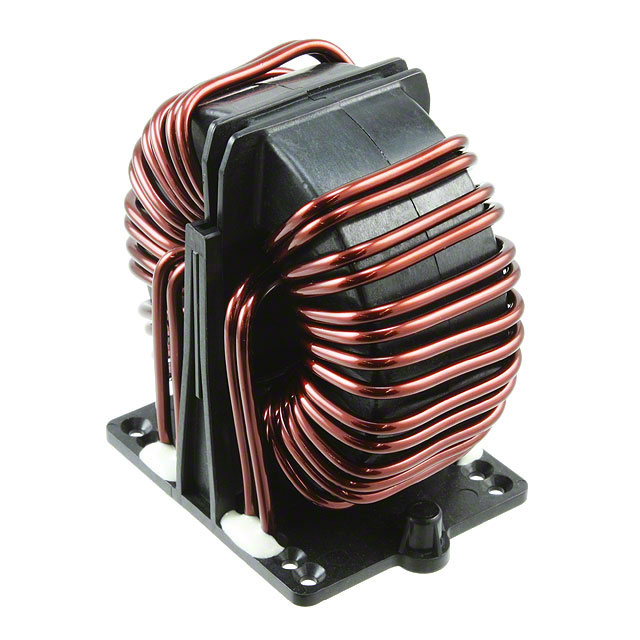

Schaffner EMC, Inc.
| Part Number | RB8522-36-1M5 | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|
| Description | CMC 1.5MH 36A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5348 pcs | Data sheet | RB8522-36-1M5.pdf |
| Voltage Rating - DC | 1000V (1kV) | Voltage Rating - AC | 600V |
| Size / Dimension | 2.362" L x 1.988" W (60.00mm x 50.50mm) | Series | RB |
| Ratings | - | Packaging | Bulk |
| Package / Case | Vertical, 8 PC Pin | Other Names | 811862 817-1675 RB8522361M5 |
| Operating Temperature | -40°C ~ 125°C | Number of Lines | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 1.5mH @ 400Hz | Height (Max) | 3.150" (80.00mm) |
| Filter Type | Power Line | Features | - |
| Detailed Description | 1.5mH @ 400Hz 2 Line Common Mode Choke Through Hole 36A DCR 3 mOhm (Typ) | DC Resistance (DCR) (Max) | 3 mOhm (Typ) |
| Current Rating (Max) | 36A | Approvals | - |
