Schaffner EMC, Inc.
| Part Number | RB8522-25-2M0 | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|

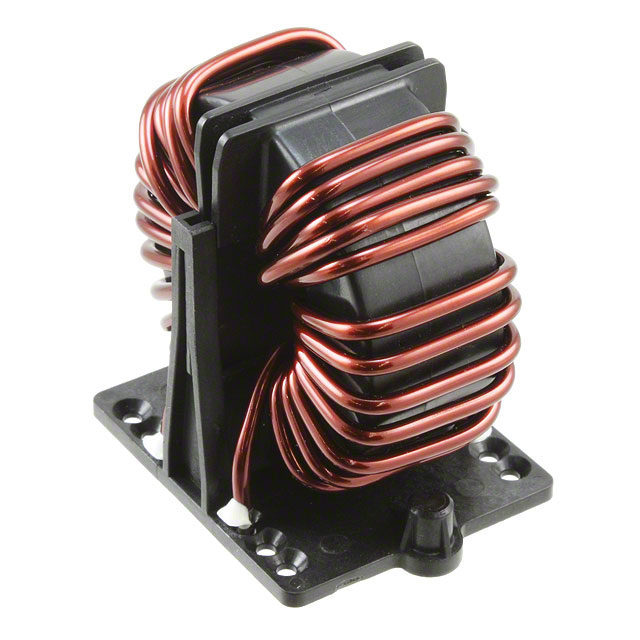

| Description | COMMON MODE CHOKE 2MH 25A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6678 pcs | Data sheet | RB8522-25-2M0.pdf |
| Voltage Rating - DC | 1000V (1kV) | Voltage Rating - AC | 600V |
| Size / Dimension | 2.165" L x 1.807" W (55.00mm x 45.90mm) | Series | RB |
| Ratings | - | Packaging | Bulk |
| Package / Case | Vertical, 8 PC Pin | Other Names | 811861 817-1676 RB8522252M0 |
| Operating Temperature | -40°C ~ 125°C | Number of Lines | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 2mH @ 1kHz | Height (Max) | 2.677" (68.00mm) |
| Filter Type | Power Line | Features | - |
| Detailed Description | 2mH @ 1kHz 2 Line Common Mode Choke Through Hole 25A DCR 4.2 mOhm (Typ) | DC Resistance (DCR) (Max) | 4.2 mOhm (Typ) |
| Current Rating (Max) | 25A | Approvals | - |
