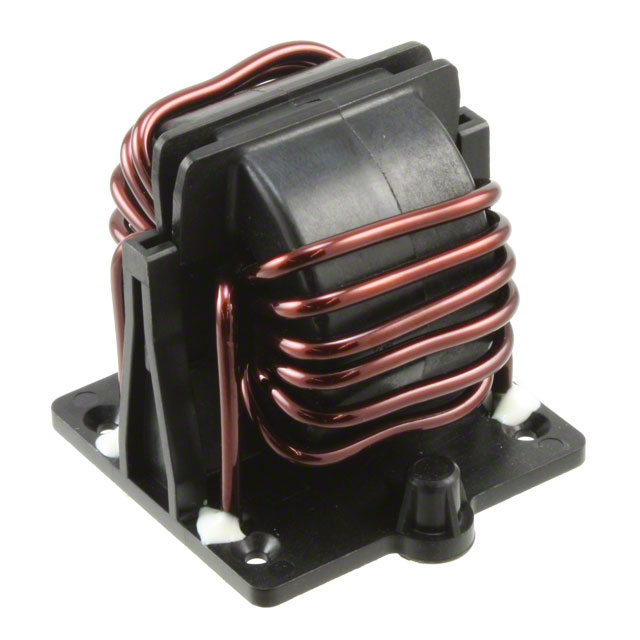

RB6522-16-1M0

Schaffner EMC, Inc.

Image may be representation. See specifications for product details.

Product Overview

Part Number:	RB6522-16-1M0
Manufacturer/Brand:	Schaffner EMC, Inc.
Product description	COMMON MODE CHOKE 1MH 16A 2LN TH
Datasheets:	RB6522-16-1M0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	9667 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 9667 pcs

Reference Price (In US Dollars)

1 pcs: $3.753

10 pcs: $3.47

100 pcs: $2.814

500 pcs: $2.772

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.753

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of RB6522-16-1M0

Part Number	RB6522-16-1M0	Manufacturer	Schaffner EMC, Inc.
Description	COMMON MODE CHOKE 1MH 16A 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9667 pcs	Data sheet	RB6522-16-1M0.pdf
Voltage Rating - DC	1000V (1kV)	Voltage Rating - AC	600V
Size / Dimension	1.846" L x 1.772" W (46.90mm x 45.00mm)	Series	RB
Ratings	-	Packaging	Bulk
Package / Case	Vertical, 4 PC Pin	Other Names	811872 817-1673 RB6522161M0
Operating Temperature	-40°C ~ 125°C	Number of Lines	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance @ Frequency	1mH @ 400Hz	Height (Max)	2.047" (52.00mm)
Filter Type	Power Line	Features	-
Detailed Description	1mH @ 400Hz 2 Line Common Mode Choke Through Hole 16A DCR 4.6 mOhm (Typ)	DC Resistance (DCR) (Max)	4.6 mOhm (Typ)
Current Rating (Max)	16A	Approvals	-
