RB6132-25-0M5

Schaffner EMC, Inc.

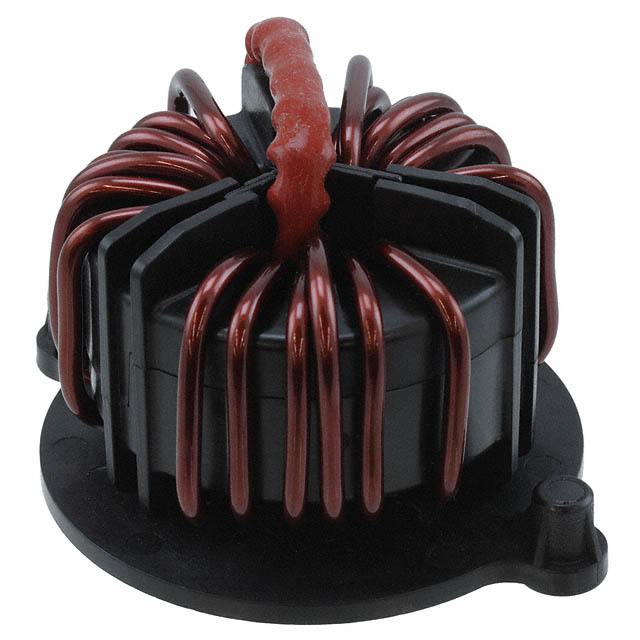

Image may be representation. See specifications for product details.

Product Overview

Part Number:	RB6132-25-0M5
Manufacturer/Brand:	Schaffner EMC, Inc.
Product description	CMC 470UH 25A 3LN TH
Datasheets:	RB6132-25-0M5.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7310 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 7310 pcs

Reference Price (In US Dollars)

1 pcs: $4.129

10 pcs: $3.994

100 pcs: $3.935

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.129

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of RB6132-25-0M5

Part Number	RB6132-25-0M5	Manufacturer	Schaffner EMC, Inc.
Description	CMC 470UH 25A 3LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7310 pcs	Data sheet	RB6132-25-0M5.pdf
Voltage Rating - DC	1000V (1kV)	Voltage Rating - AC	600V
Size / Dimension	2.315" L x 2.276" W (58.80mm x 57.80mm)	Series	RB
Ratings	-	Packaging	Bulk
Package / Case	Horizontal, 4 PC Pin	Other Names	811891 817-1668 RB6132250M5
Operating Temperature	-40°C ~ 125°C	Number of Lines	3
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance @ Frequency	470µH @ 400Hz	Height (Max)	1.890" (48.00mm)
Filter Type	Power Line	Features	-
Detailed Description	470µH @ 400Hz 3 Line Common Mode Choke Through Hole 25A DCR 2.4 mOhm (Typ)	DC Resistance (DCR) (Max)	2.4 mOhm (Typ)
Current Rating (Max)	25A	Approvals	-
