FN7510-100-M8

Schaffner EMC, Inc.Schaffner EMC, Inc.

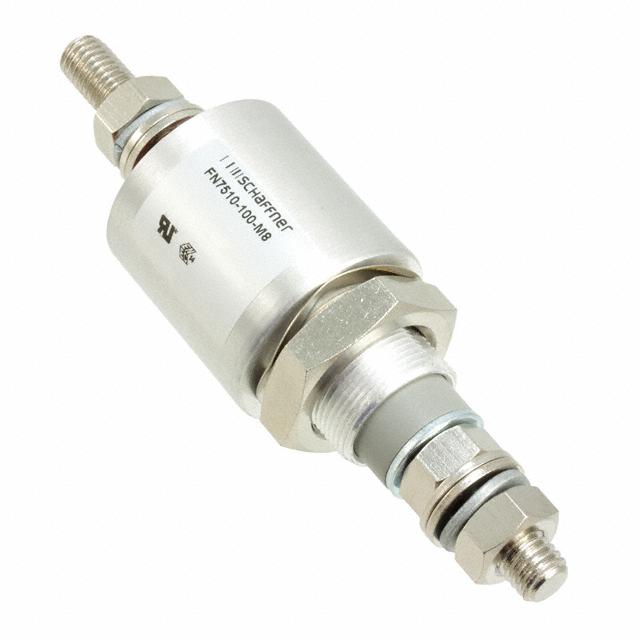

FN7510-100-M8 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: FN7510-100-M8
Manufacturer/Brand: Schaffner EMC, Inc.
Product description CAP FEEDTHRU 0.047UF 1KV AXIAL
Datasheets: FN7510-100-M8.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 1095 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 1095 pcs
Reference Price (In US Dollars)
1 pcs
$28.881
10 pcs
$27.077
100 pcs
$23.467
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$28.881

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of FN7510-100-M8

Part Number FN7510-100-M8 Manufacturer Schaffner EMC, Inc.
Description CAP FEEDTHRU 0.047UF 1KV AXIAL Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 1095 pcs Data sheet FN7510-100-M8.pdf
Voltage - Rated 1000V (1kV) Tolerance ±20%
Thread Size M20x1 Temperature Coefficient -
Size / Dimension 1.260" Dia x 4.449" L (32.00mm x 113.00mm) Series FN 751X
Ratings Y2 Packaging Tray
Package / Case Axial - Threaded Terminals Other Names 297-877
801797
817-1727
FN7510-100-M8-ND
FN7510100M8
Operating Temperature -40°C ~ 100°C Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 10 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insertion Loss - Height (Max) -
Detailed Description 0.047µF Feed Through Capacitor 1000V (1kV) 100A 0.23 mOhm (Typ) Axial - Threaded Terminals DC Resistance (DCR) (Max) 0.23 mOhm (Typ)
Current 100A Capacitance 0.047µF
